ADF

M018/M019 4-60 SM

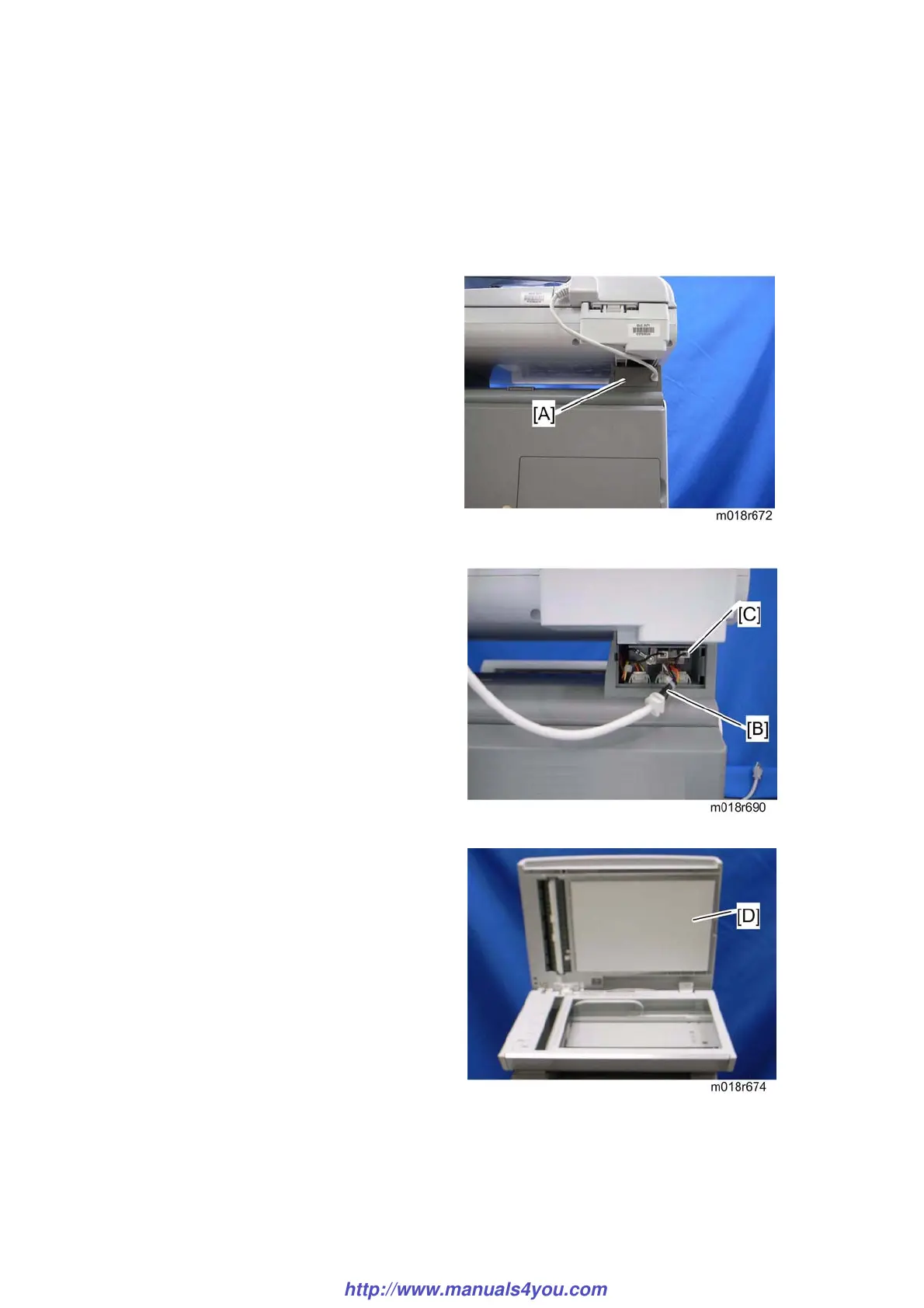

4.12 ADF

4.12.1 ADF UNIT

1. Stand left cover [A]

2. Disconnect the ADF harness [B]

and power cord [C].

3. Open the ADF unit [D]
