Ricoh Aficio SP C232SF Service Manual

Basic Operation
G849 8 SM
2.2 BASIC OPERATION
2.2.1 PAPER SEPARATION AND FEED
The paper tray holds 500 sheets of paper.
The paper feed unit uses a friction pad system.

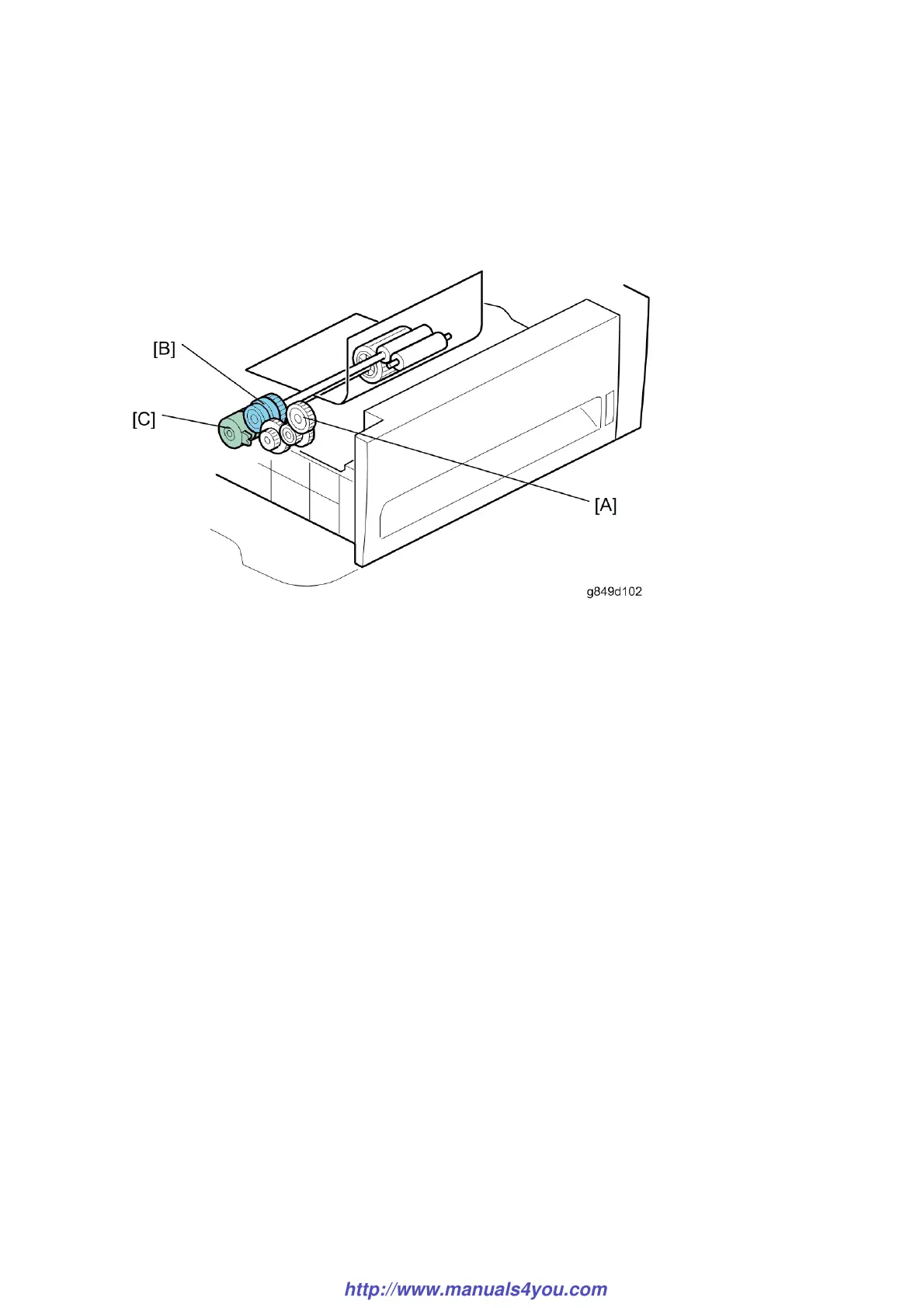

The gear [A] is driven by the transport/fusing motor in the mainframe.
The relay clutch [B] and paper feed clutch [C] control drive from the mainframe. When the
optional tray is selected as the feed tray, the relay clutch and paper feed clutch transmit
drive power to the relay roller and paper feed roller.
