Paper Feed Unit
SM 5 G849
Paper Feed
Unit TK1010
(G849)
1.1.5 FRICTION PAD

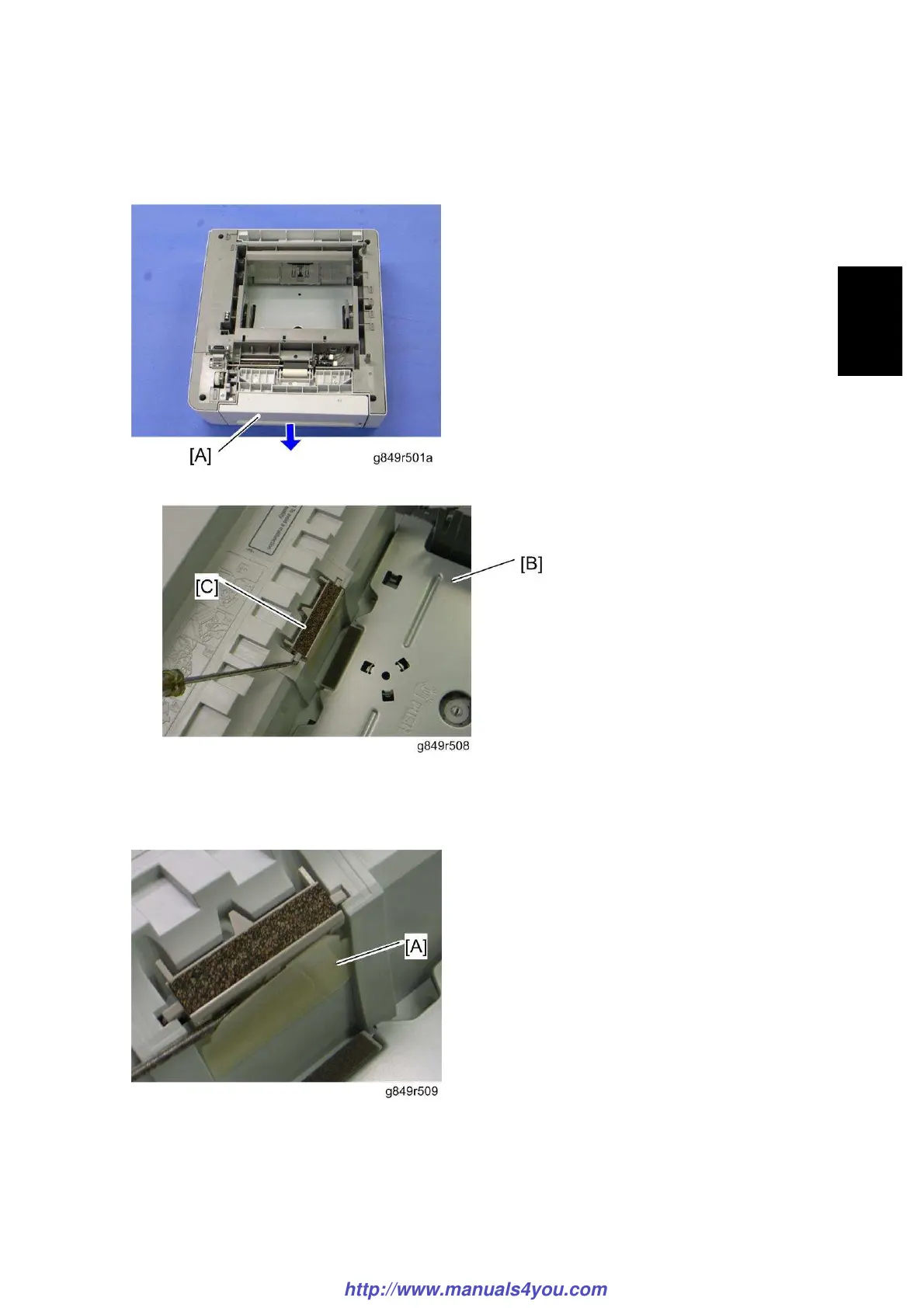

1. Pull out the tray [A]
2. Press down the bottom plate [B]
3. Friction pad [C] (hooks, spring x 1)
When reassembling
When re-installing the friction pad, make sure that the mylar [A] does not go under the
friction pad.
