Ricoh Aficio SP C232SF - Front Cover Unit

Exterior Covers
M018/M019 4-6 SM

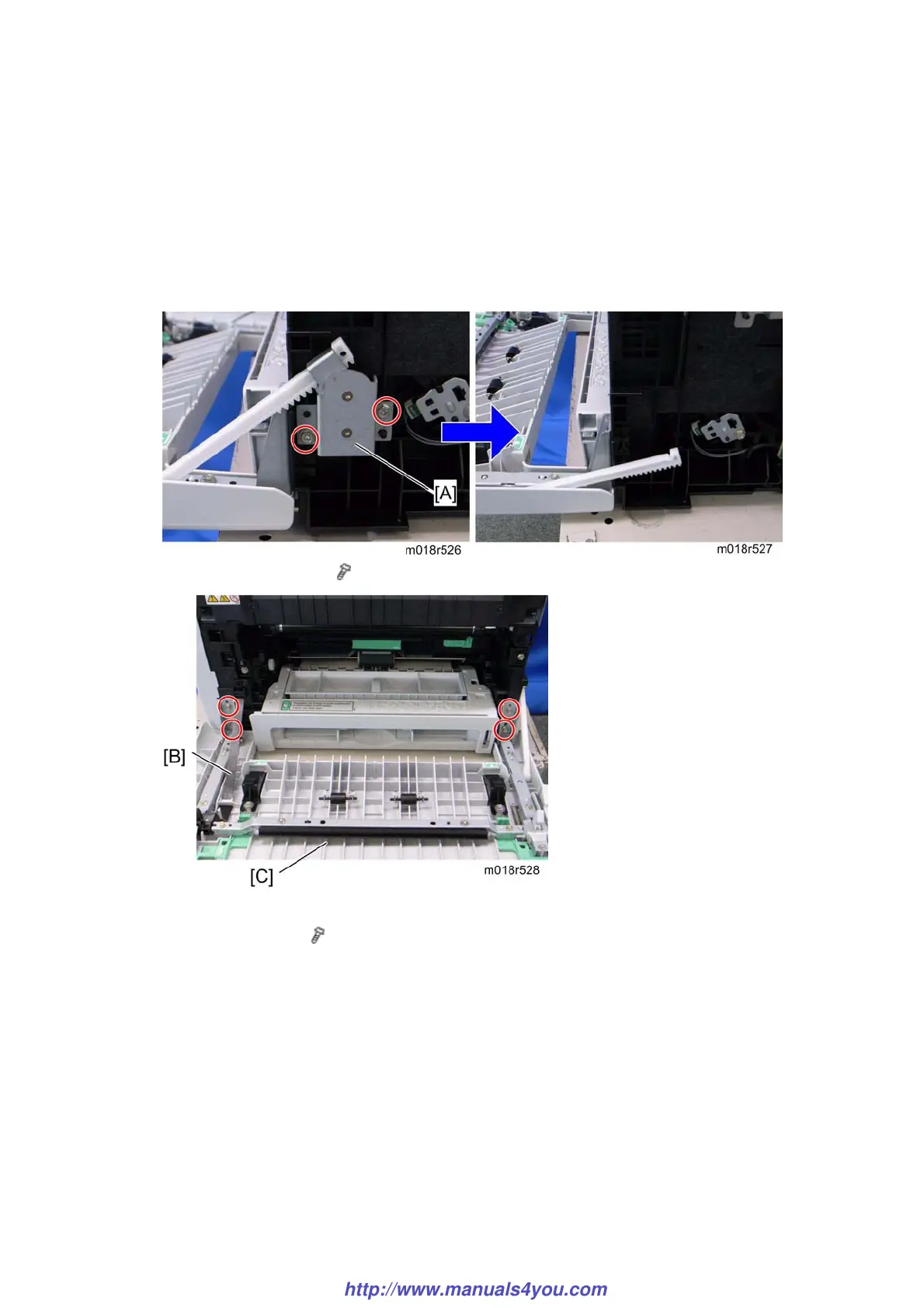

4.3.5 FRONT COVER UNIT
1. Rear cover ( p.4-3)
2. Operation panel ( p.4-4)
3. Transfer unit ( p.4-27)
4. Right cover ( p.4-5)
5. Cover link gear unit [A] (
x 2)
6. Release the belt [B]
7. Front cover unit [C] (
x 4)
