Ricoh Aficio SP C232SF Service Manual

Paper Feed Unit
SM 1 G849
Paper Feed
Unit TK1010
(G849)
1. REPLACEMENT AND ADJUSTMENT
1.1 PAPER FEED UNIT
1.1.1 TOP COVER

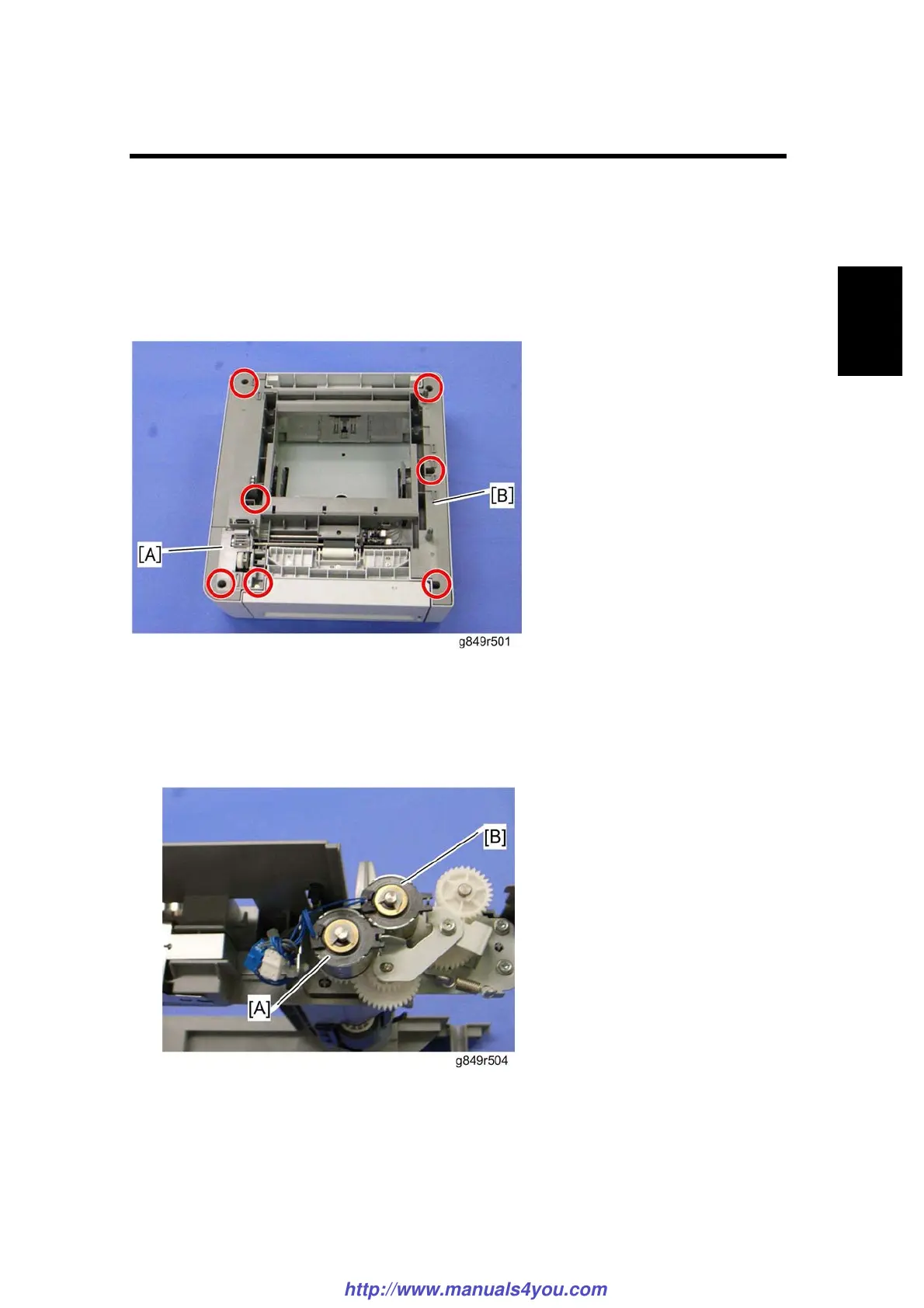

1. Top left cover [A] ( x 1)
2. Top cover [B] ( x 6)
1.1.2 PAPER FEED AND RELAY CLUTCH
1. Top cover (☛ Top Cover)
2. Paper feed clutch [A] ( x 1,  x 1)
3. Relay clutch [B] ( x 1,  x 1)
