Electrical Components
M018/M019 4-46 SM

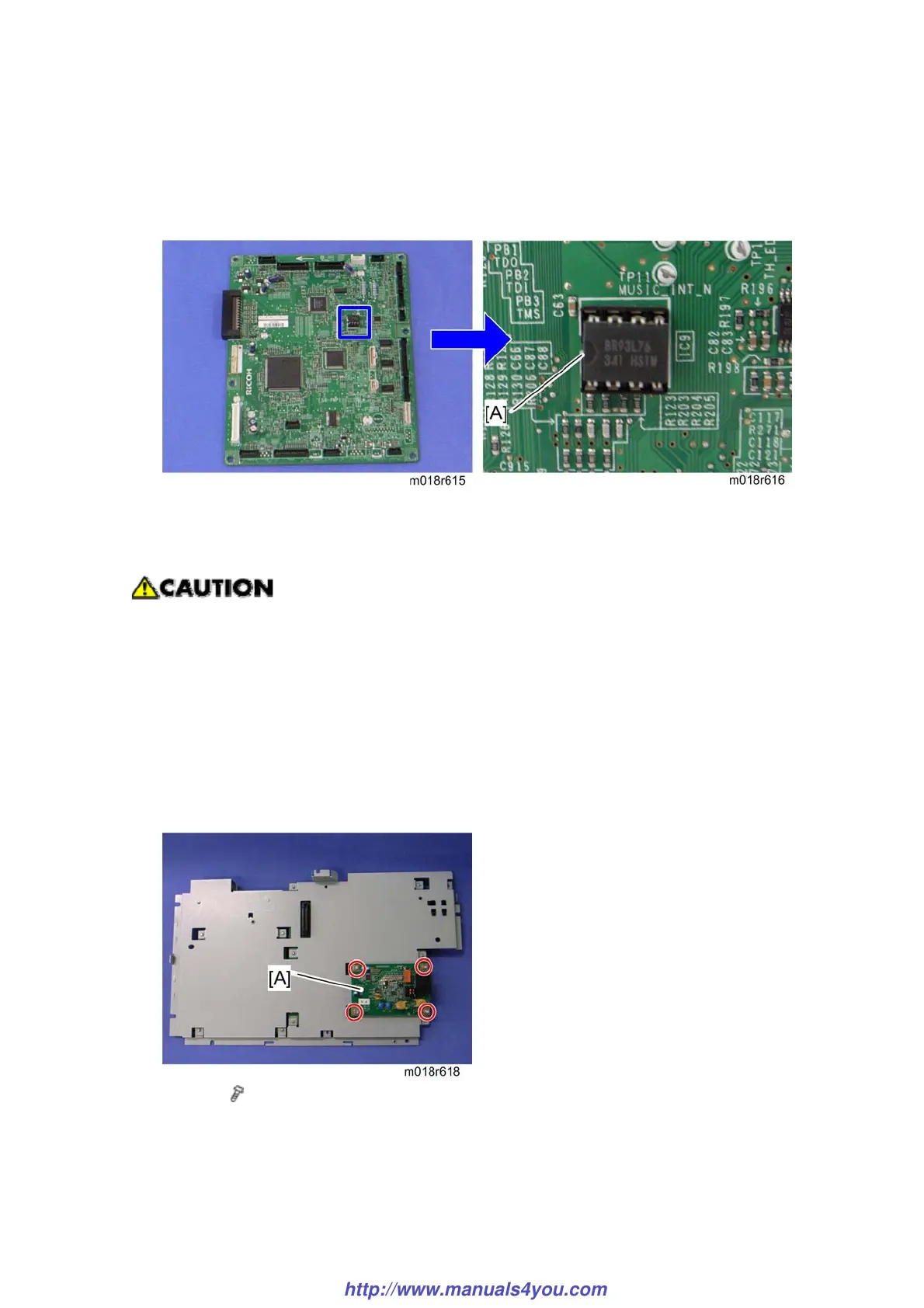

When installing the new EGB
1. Remove the EEPROM from the old EGB.
2. Install it on the new EGB with the mark [A] pointing to the left side of the board after you
replace the EGB.
3. Replace the EEPROM if the EEPROM on the old EGB is defective.
Keep the EEPROM away from any objects that can cause static electricity. Static
electricity can damage EEPROM data.
Make sure that the EEPROM is correctly installed on the EGB.
4.11.3 FCU
1. Rear cover ( p.4-3)
2. Controller box cover ( p.4-43 "Controller Board")
3. Controller bracket ( p.4-45 "EGB Engine Board")
4. FCU [A] (
x 4)
