Electrical Components
M018/M019 4-54 SM
Fuse
There is the removable fuse on the PSU.
Fuse No. Rating
FU101: NA 15 A, 125V
FU101: EU, ASIA 6.3A, 250V
Use a correct rating fuse for the fuse replacement. Never use a wrong rating fuse.
If you do so, the machine may be damaged.
Never try direct connection of PSU circuit without a fuse.

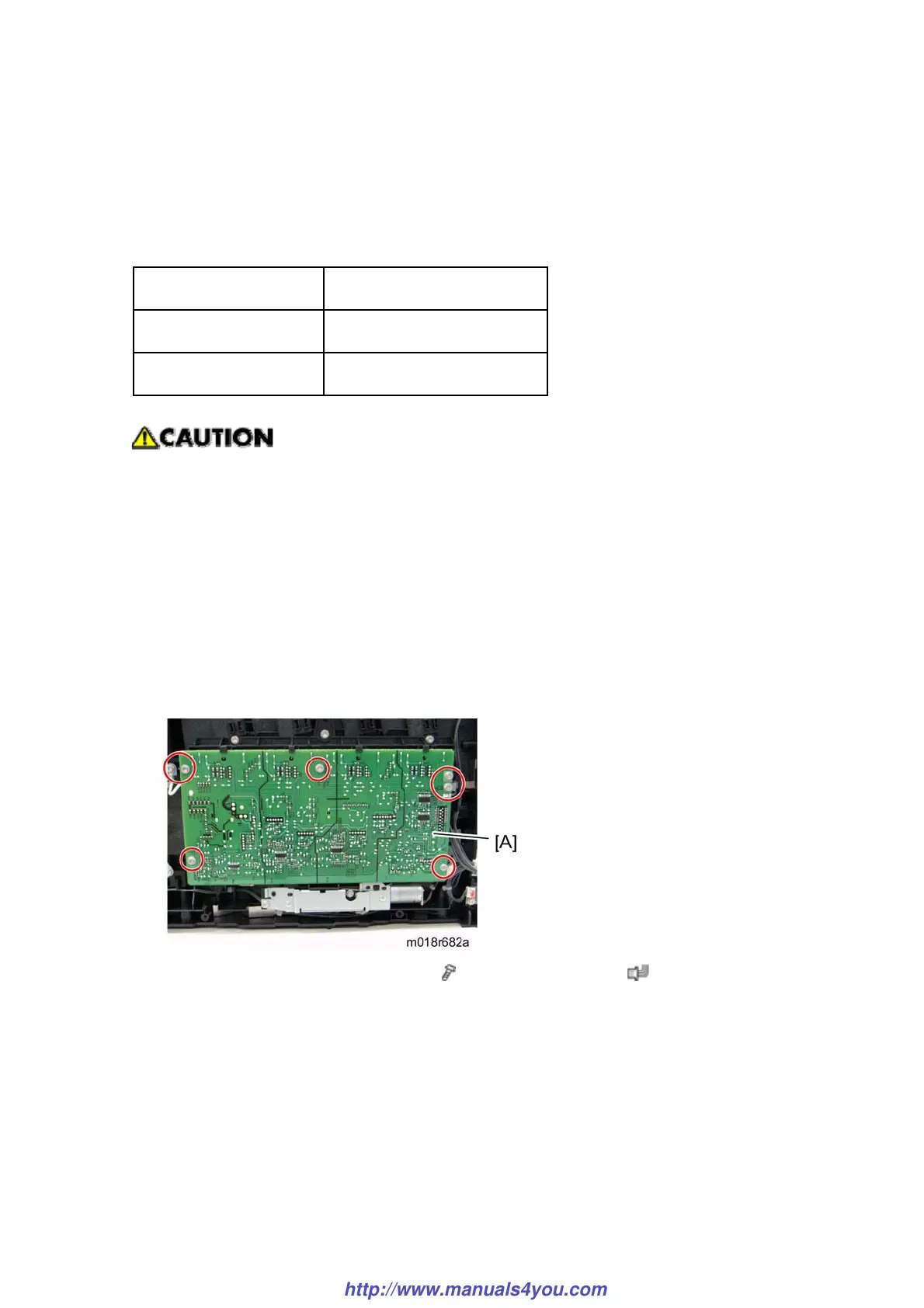

4.11.9 HIGH VOLTAGE POWER SUPPLY BOARD
1. Remove all AIO cartridges.
1. Operation panel ( p.4-4)
2. Rear cover ( p.4-3)
3. Right cover ( p.4-5)
4. High Voltage Power Supply Board [A] (
x 7, ground cable x 1, x 1)
