Scanner
M018/M019 4-76 SM

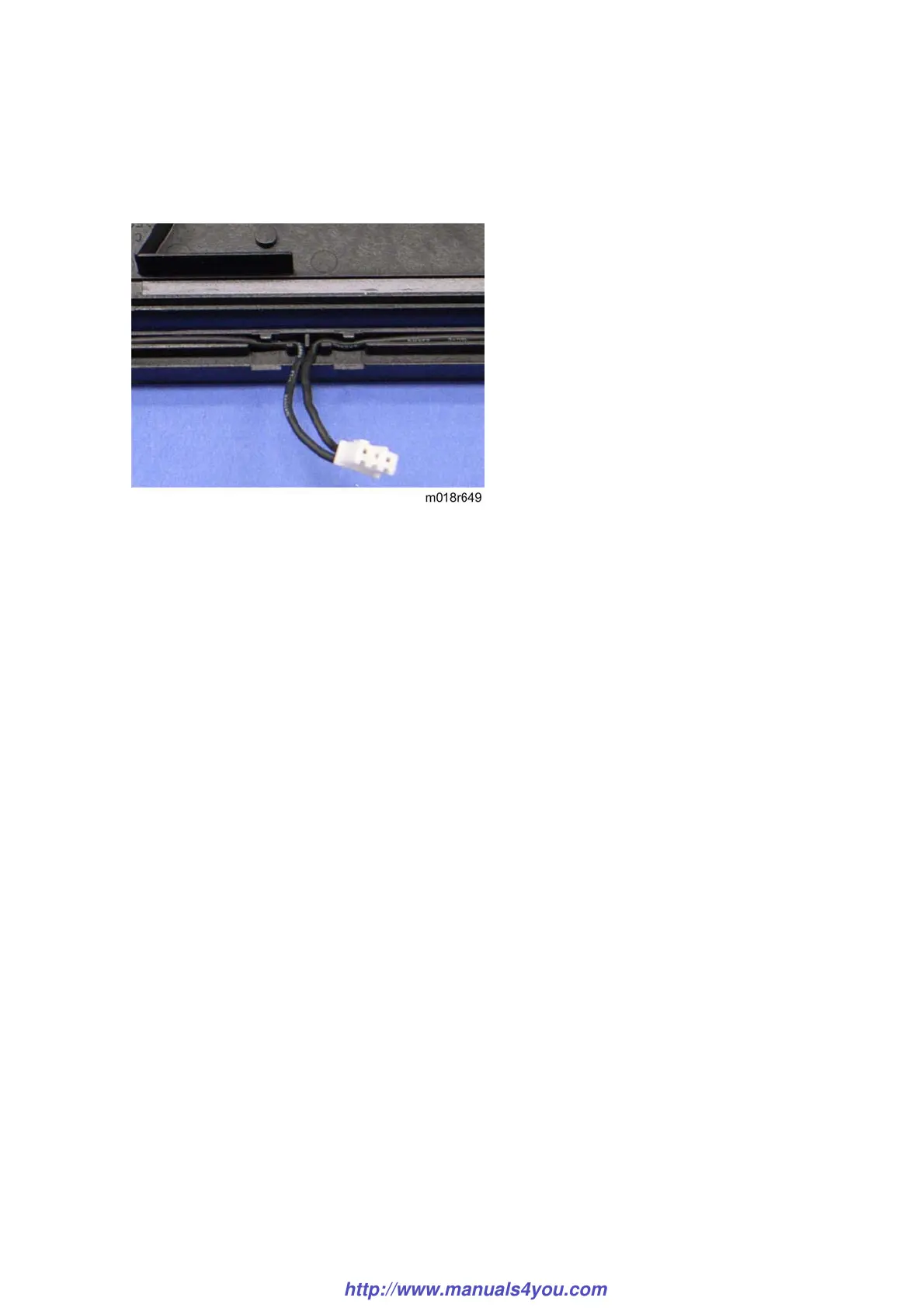

When reinstalling the exposure lamp
Wire the lamp cords as shown above. Otherwise, the top cover pinches the lamp cords and
damages them when reinstalling the top cover on the scanner carriage unit.
