Ricoh Aficio SP C232SF Service Manual

Machine Overview
SM 1-5 M018/M019
Product
Information

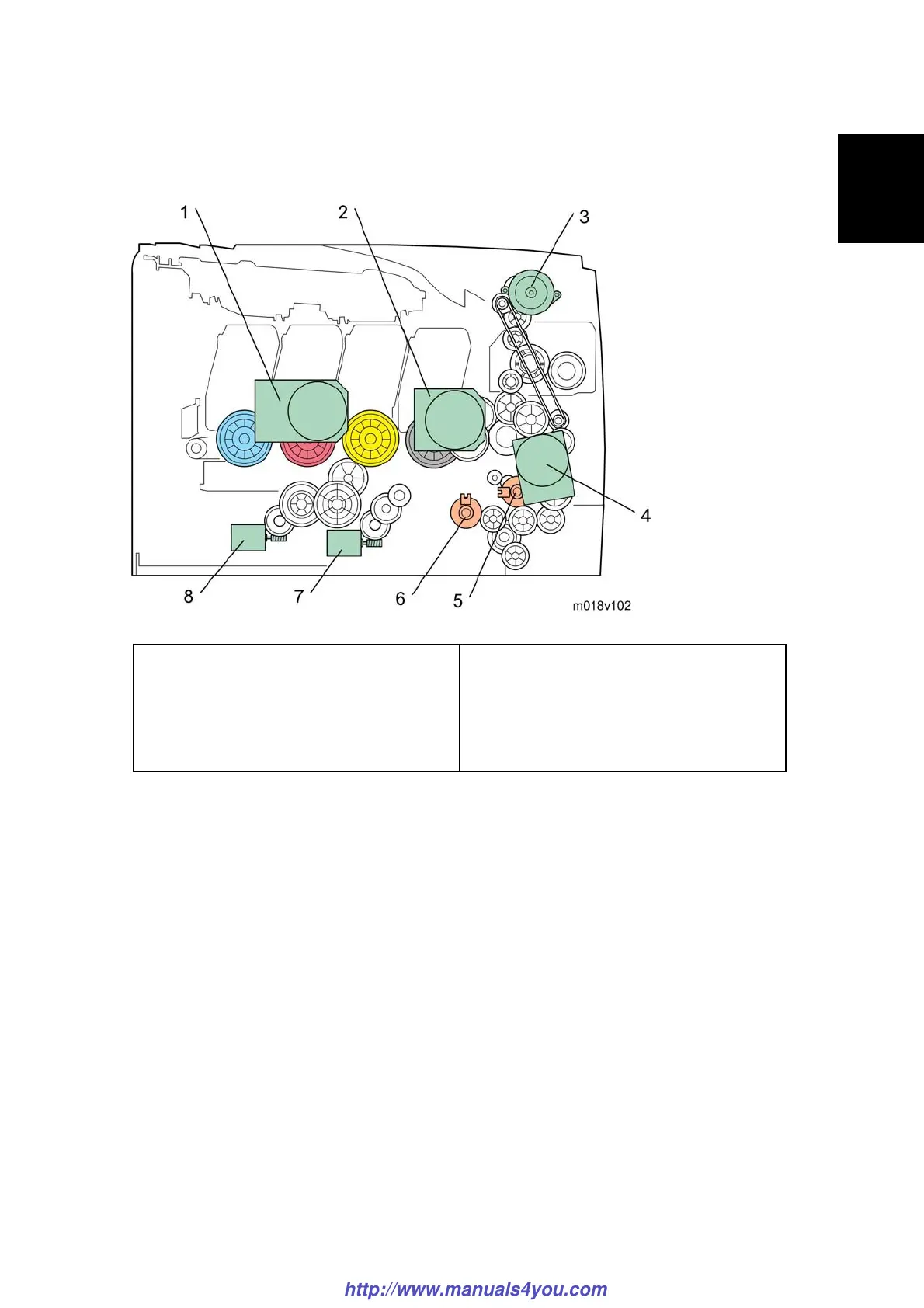

1.2.3 DRIVE LAYOUT
1. Color AIO Motor
2. Black AIO Motor
3. Duplex Motor
4. Transport/Fusing Motor
5. Registration Clutch
6. Paper Feed Clutch
7. Agitator Motor
8. ITB (Image Transfer Belt) Contact Motor
 Color AIO Motor:
This drives the color AIOs (Cyan, Magenta and Yellow)
 Black AIO Motor:
This drives the black AIO and the ITB (Image Transfer Belt).
 Duplex Motor:
This drives the paper exit roller and the duplex roller.
 Transport/Fusing Motor:
This drives the fusing unit, paper feed roller, registration roller and paper exit roller via
the paper feed clutch, registration clutch and gears.
