Ricoh Aficio SP C232SF Service Manual

Image Fusing
SM 4-35 M018/M019
Replacement
&
Adjustment

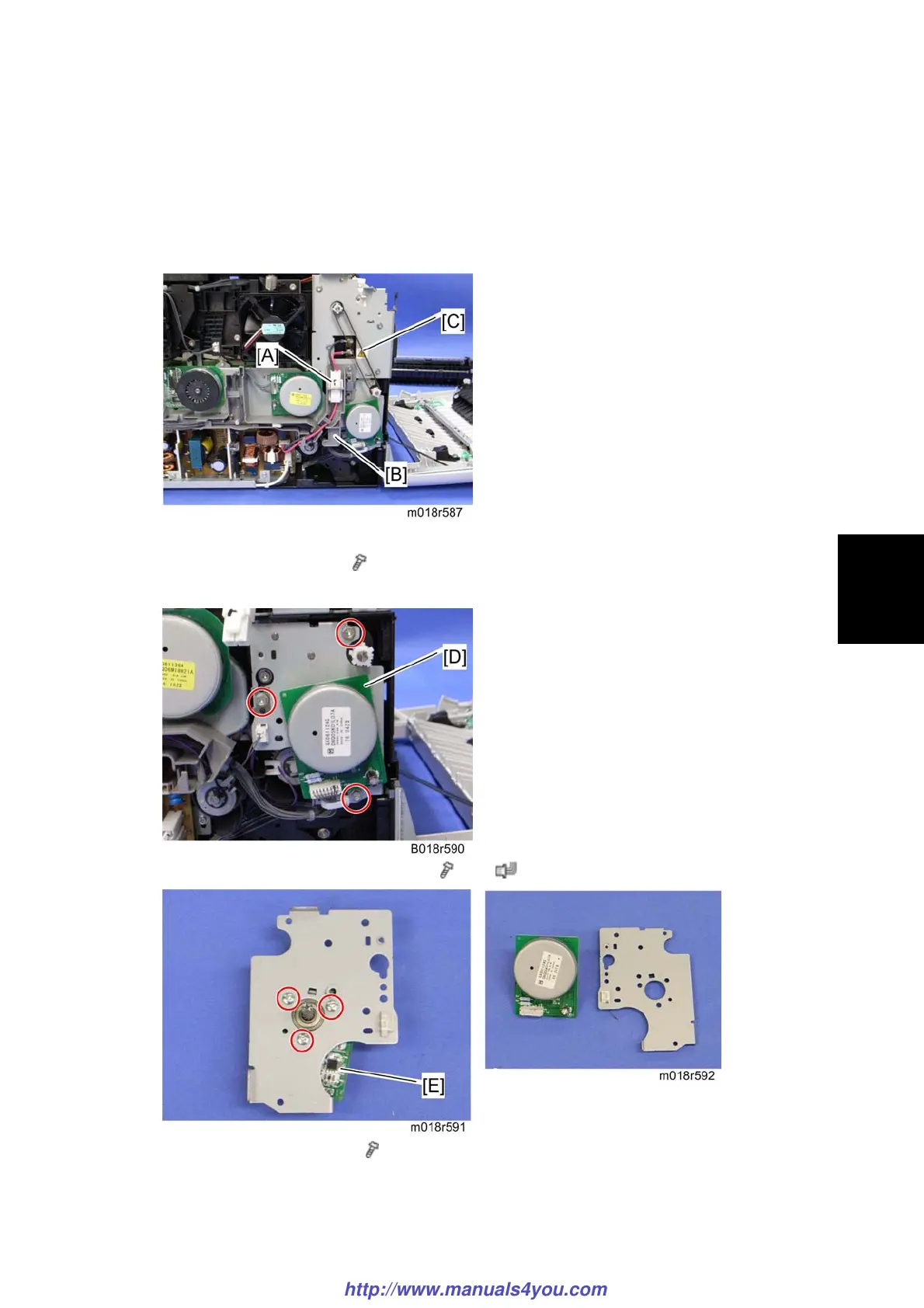

4.8.3 TRANSPORT/FUSING MOTOR
1. Rear cover ( p.4-3)
2. Left cover ( p.4-5)
3. Disconnect the fusing connector [A] (hook).
4. Fusing harness guide [B] (
x 2)
5. Duplex timing belt [C]
6. Transport/Fusing motor assembly [D] (
x 3, x 3, ground plate x 1)
7. Transport/Fusing motor [E] (
x 3)
