Paper Feed Unit
G849 4 SM
When reassembling

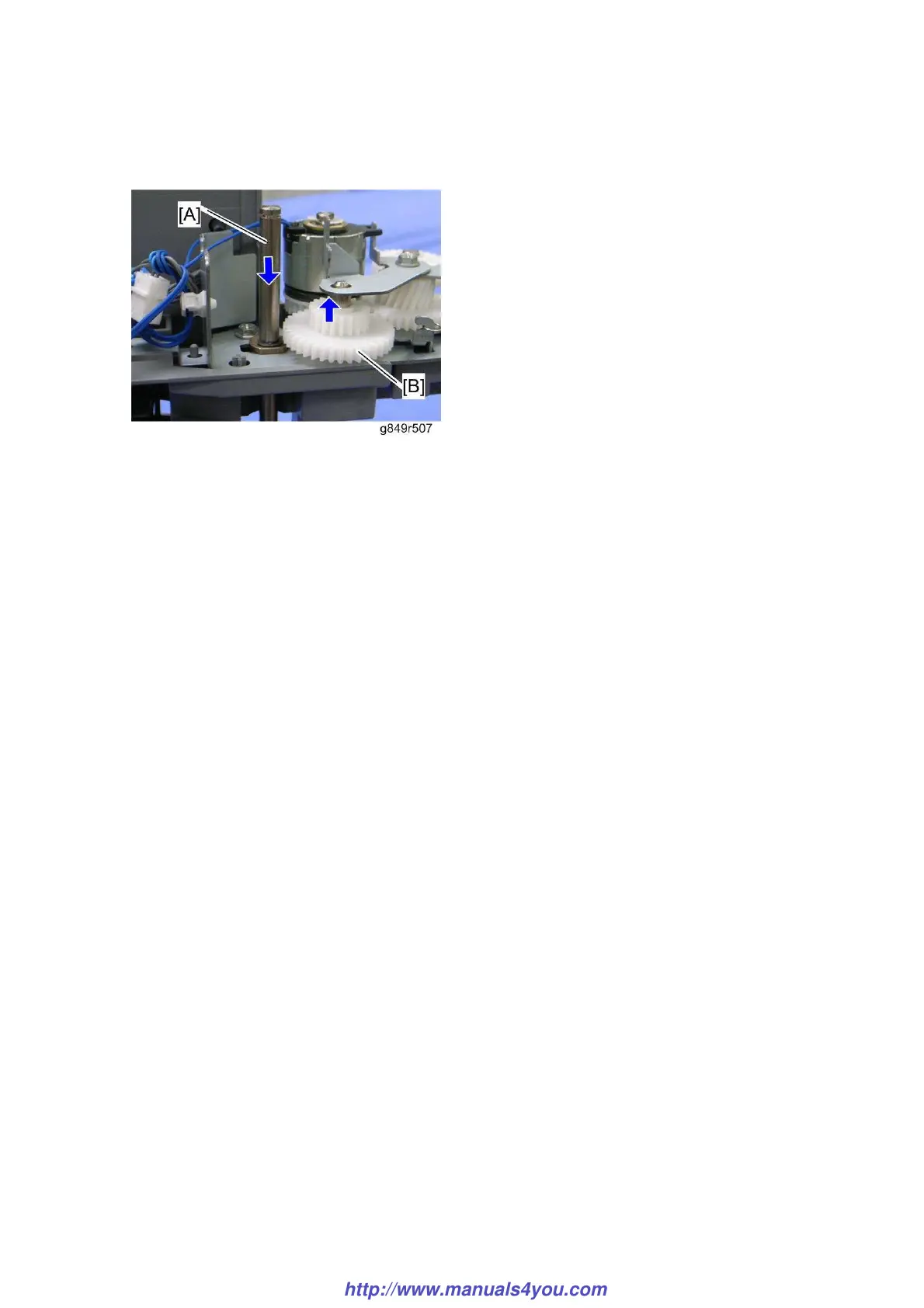

If the feed roller shaft [A] cannot be inserted easily, pull the gear [B], and then insert the
feed roller shaft.
