Ricoh Aficio SP C232SF Service Manual

Image Transfer
SM 4-17 M018/M019
Replacement
&
Adjustment
4.6 IMAGE TRANSFER
4.6.1 IMAGE TRANSFER BELT UNIT
1. Remove all the AIO cartridges ( p.4-12).
2. Transfer unit ( p.4-27)

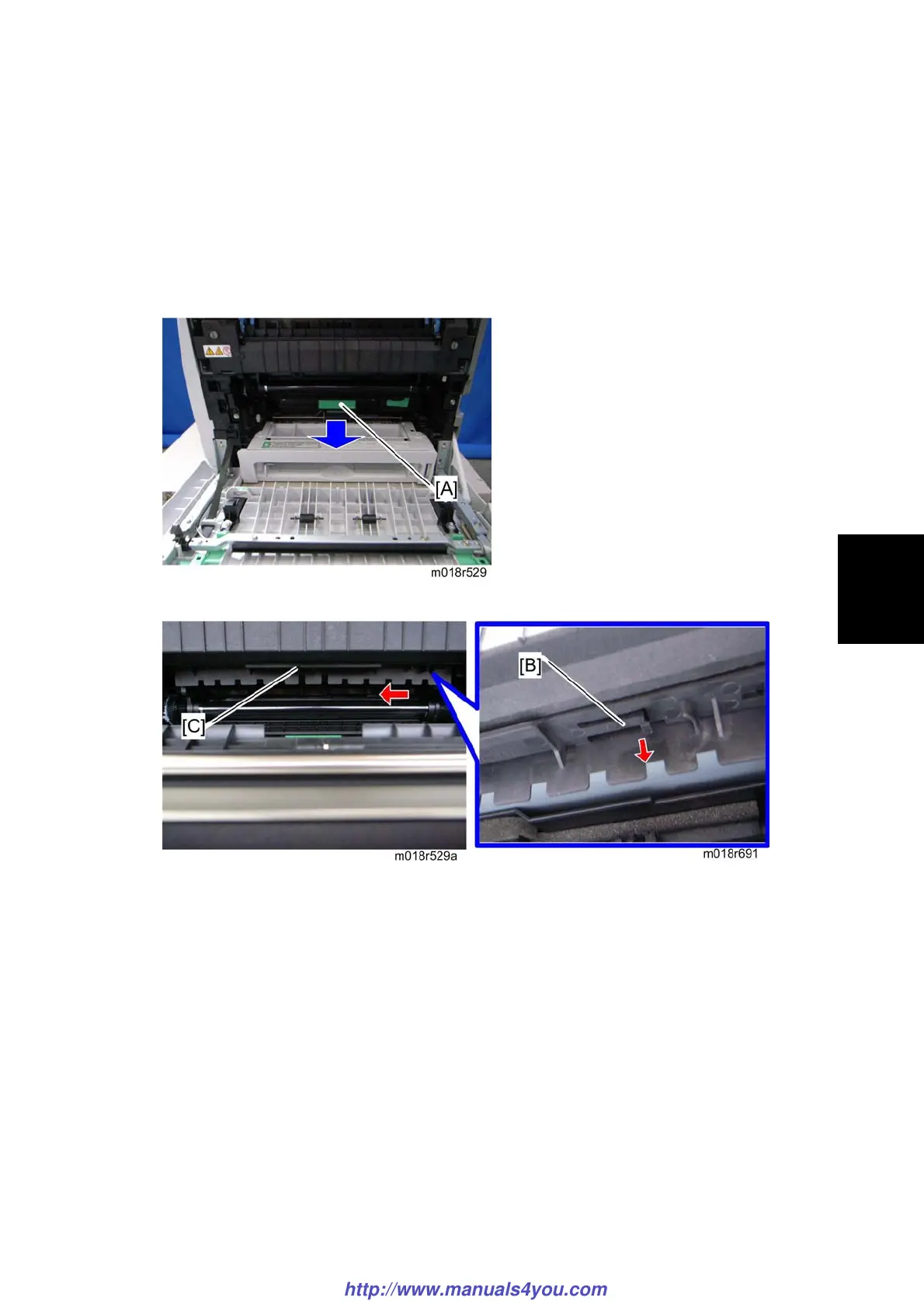

3. Pull out the waste toner bottle [A].
4. Release the hook [B] under the guide plate.
5. Move the guide plate [C] underneath the fusing unit to the left, and then remove it.
