Image Transfer
M018/M019 4-26 SM
4.6.8 WASTE TONER OVERFLOW SENSOR
1. Remove all AIO cartridges. ( p.4-12)
2. Image transfer belt unit ( p.4-17)
3. EGB ( p.4-45)
4. Waste toner sensor base ( p.4-24 "Waste Toner Bottle Set Sensor")
5. Remove the mylar fixing three hooks of the waste toner bottle set sensor.

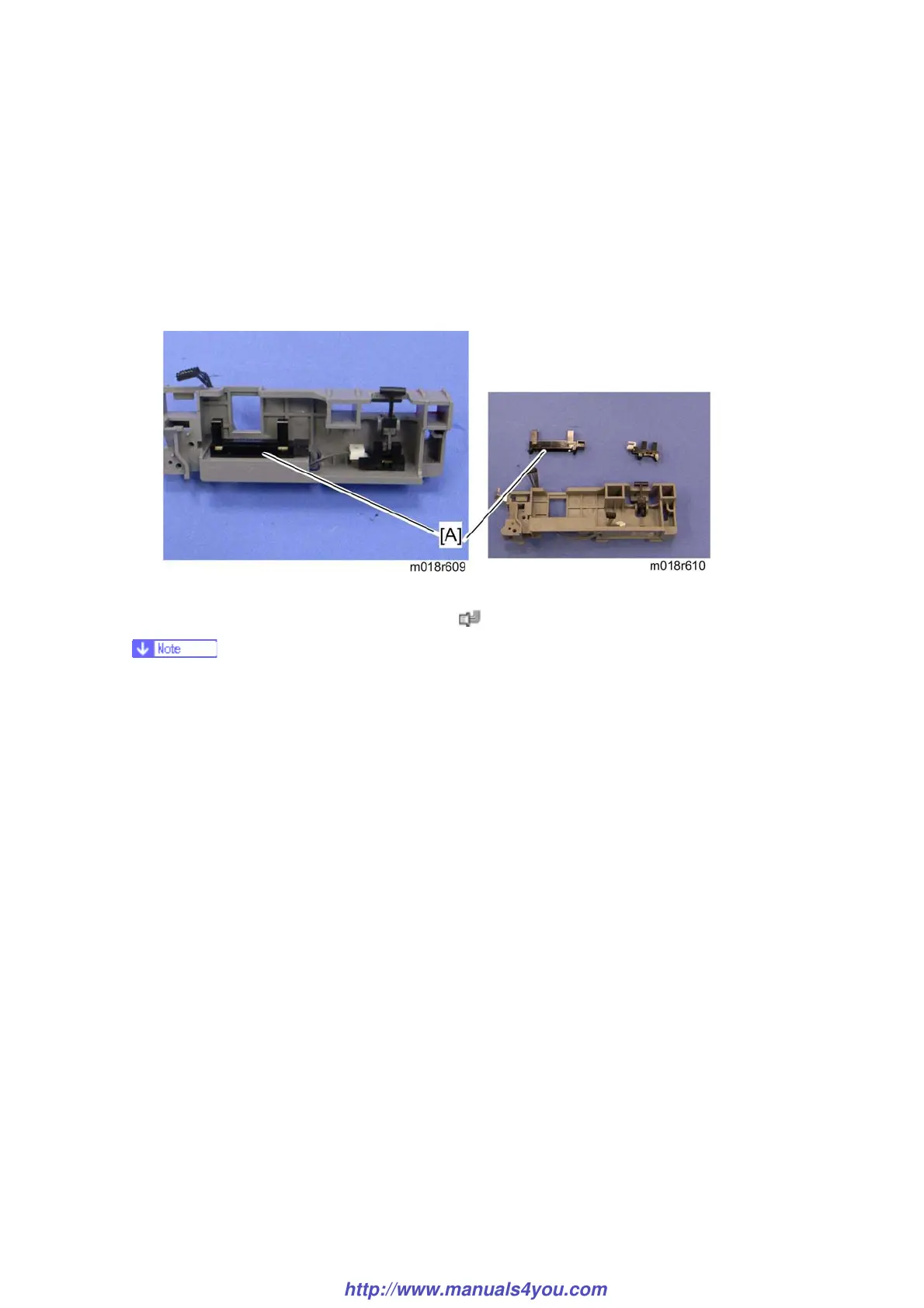

6. Waste toner overflow sensor [A] (hooks,
x 1)
 When reinstalling the waste toner overflow sensor, connect it to the black connector
of the harness.
