Paper Feed
M018/M019 4-38 SM
4.9.3 SEPARATION PAD
1. Pull out the tray.

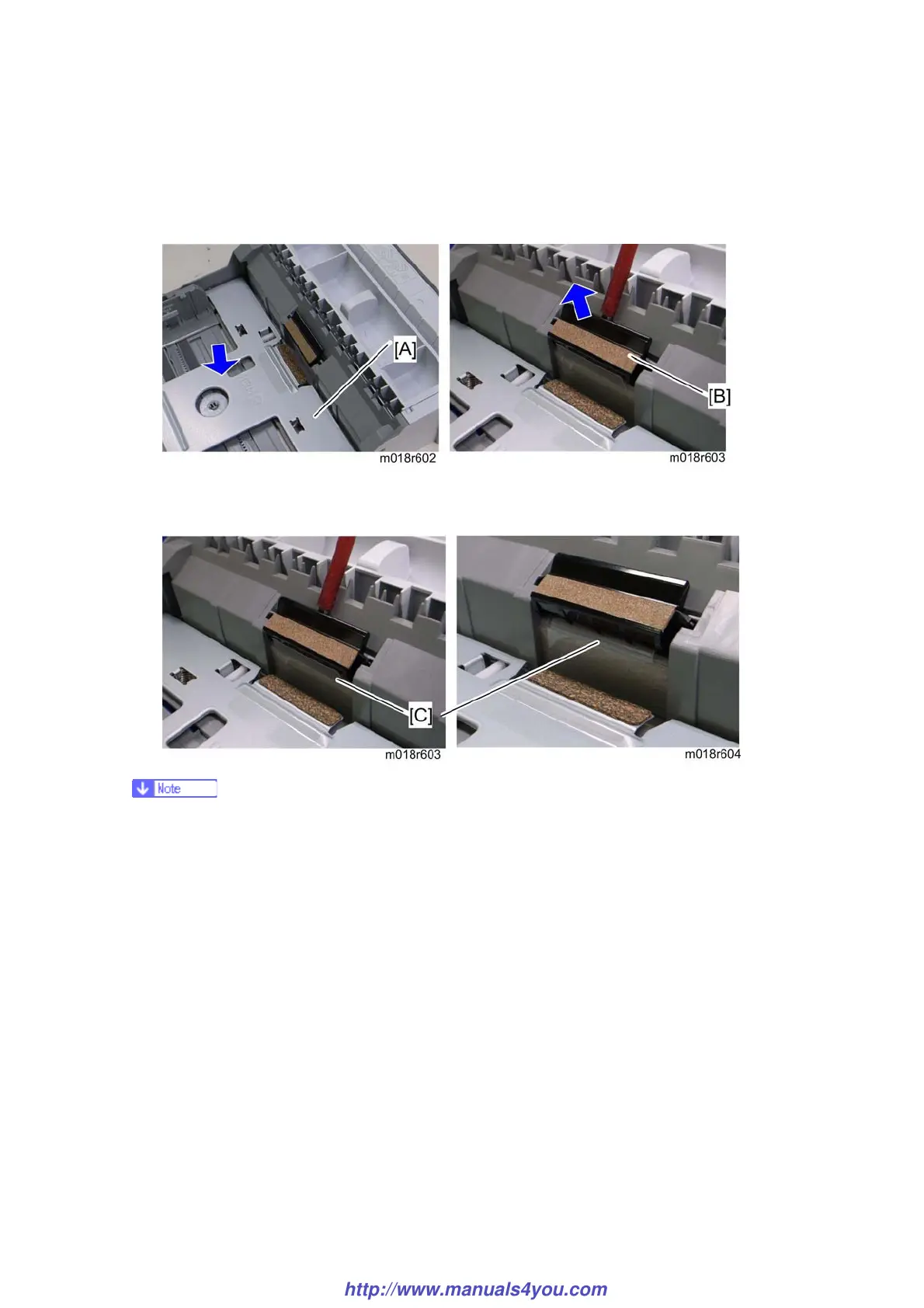

2. Push down the bottom plate [A].
3. Separation pad [B] (hooks, spring x 1)
When reinstalling the separation pad, make sure that the mylar [C] is not placed
under the separation pad. The right side image above shows incorrect installation.
