Ricoh Aficio SP C232SF Service Manual

Image Transfer
SM 4-19 M018/M019
Replacement
&
Adjustment
4.6.2 ITB (IMAGE TRANSFER BELT) CLEANING UNIT
 The ITB cleaning unit contains waste toner. When removing the ITB cleaning unit,
put it on a sheet of paper.

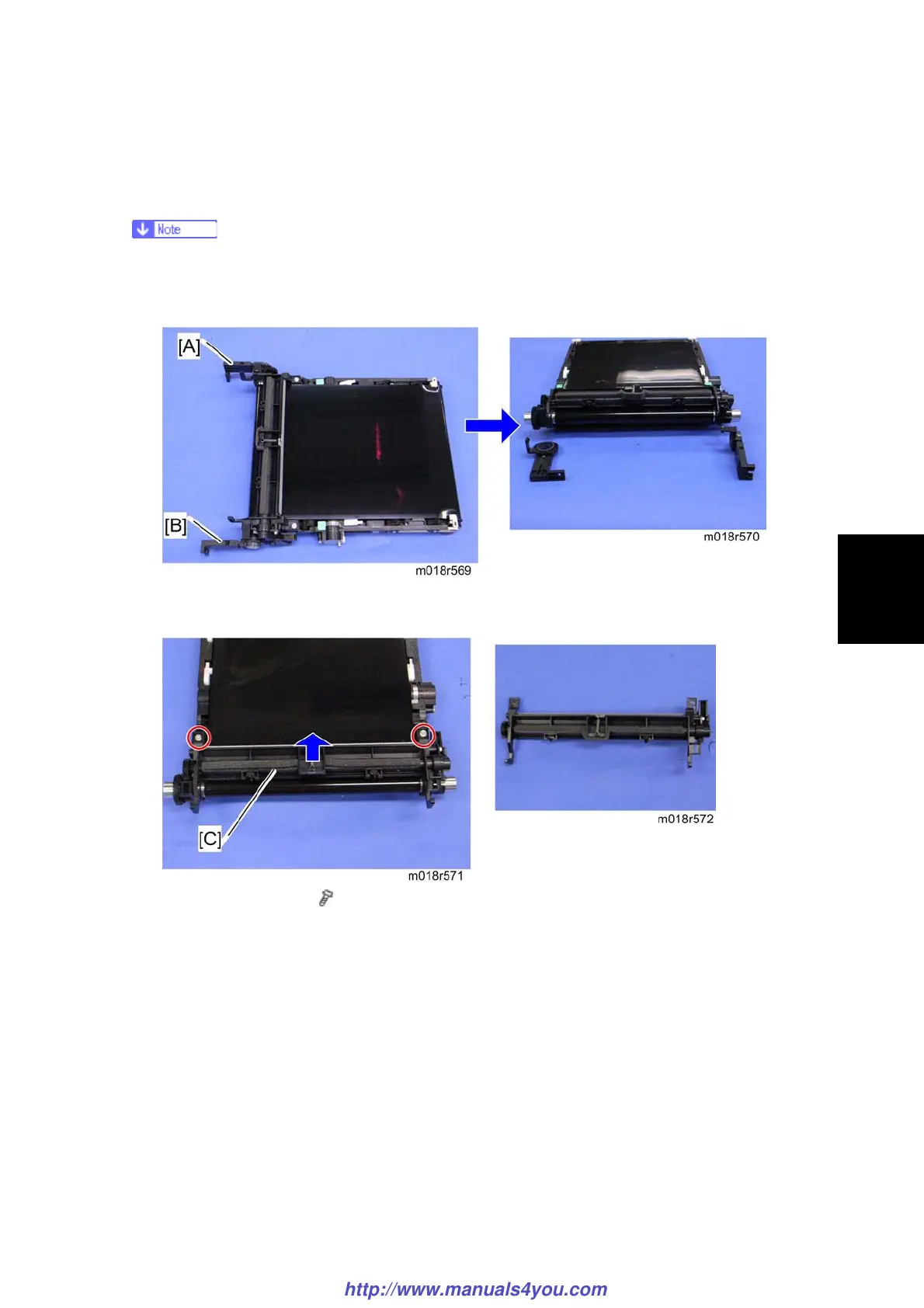

1. Image transfer belt unit ( p.4-17)
2. Left handle [A] (hook, bushing x 1)
3. Right handle [B] (hook, bushing x 1)
4. ITB cleaning unit [C] (
x 2)
