Basic Operation
SM 9 G849
Paper Feed
Unit TK1010
(G849)
2.2.2 PAPER LIFT
The bottom plate is always pressed up by the spring in the tray. Therefore, you must press
down the bottom plate when you insert the tray in the machine.

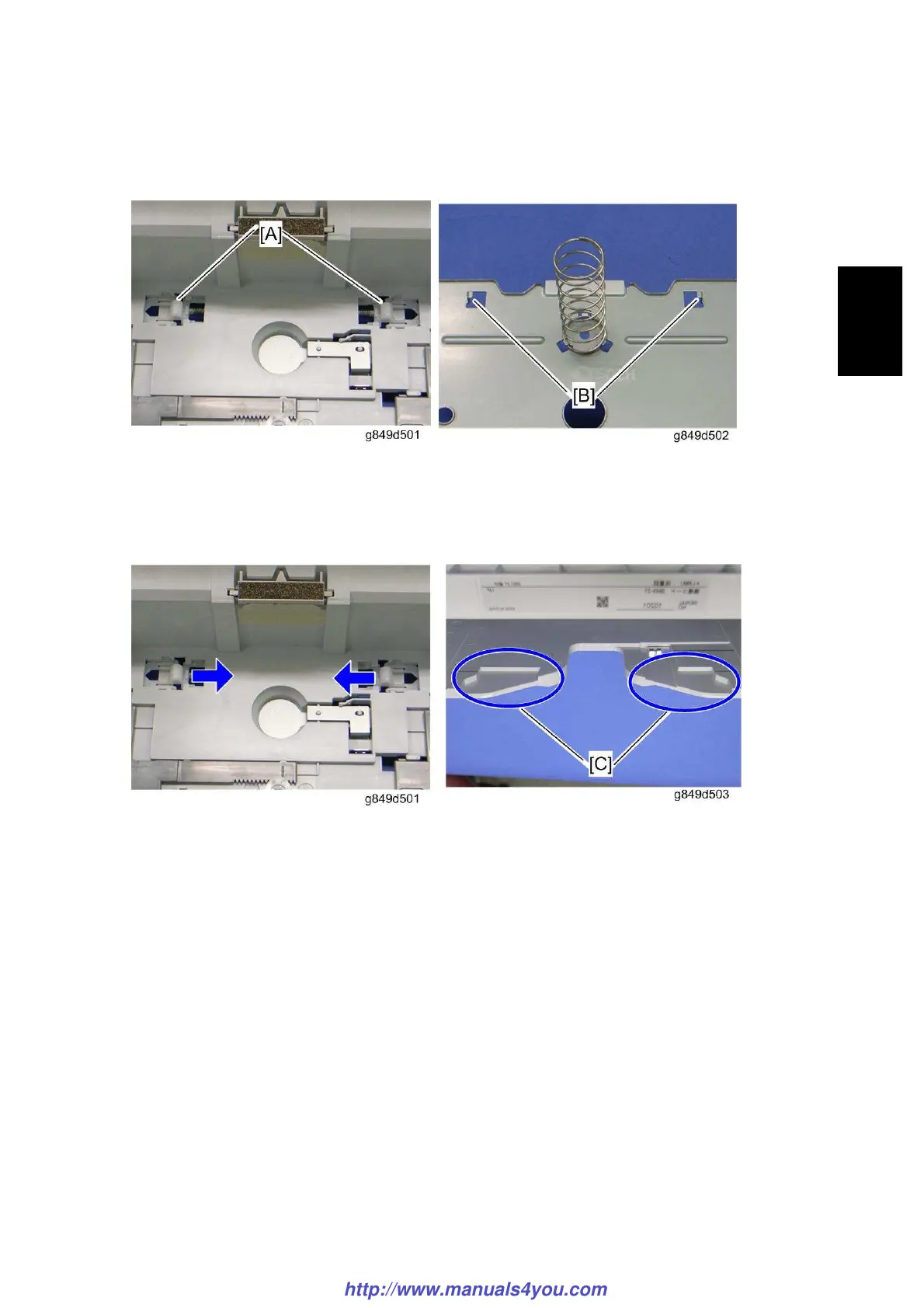

The bottom tray lock levers [A] hold the tabs [B] under the bottom plate after the bottom
plate is pressed down.
When the tray is inserted in the machine, the lock lever guides [C] in the paper feed unit
push the bottom plate lock levers, and then the lock levers release the tabs under the
bottom plate. As a result, the bottom plate is lifted by the spring.
