Ricoh Aficio SP C232SF - Adf Feed Unit; Adf Separation Pad

ADF
M018/M019 4-62 SM

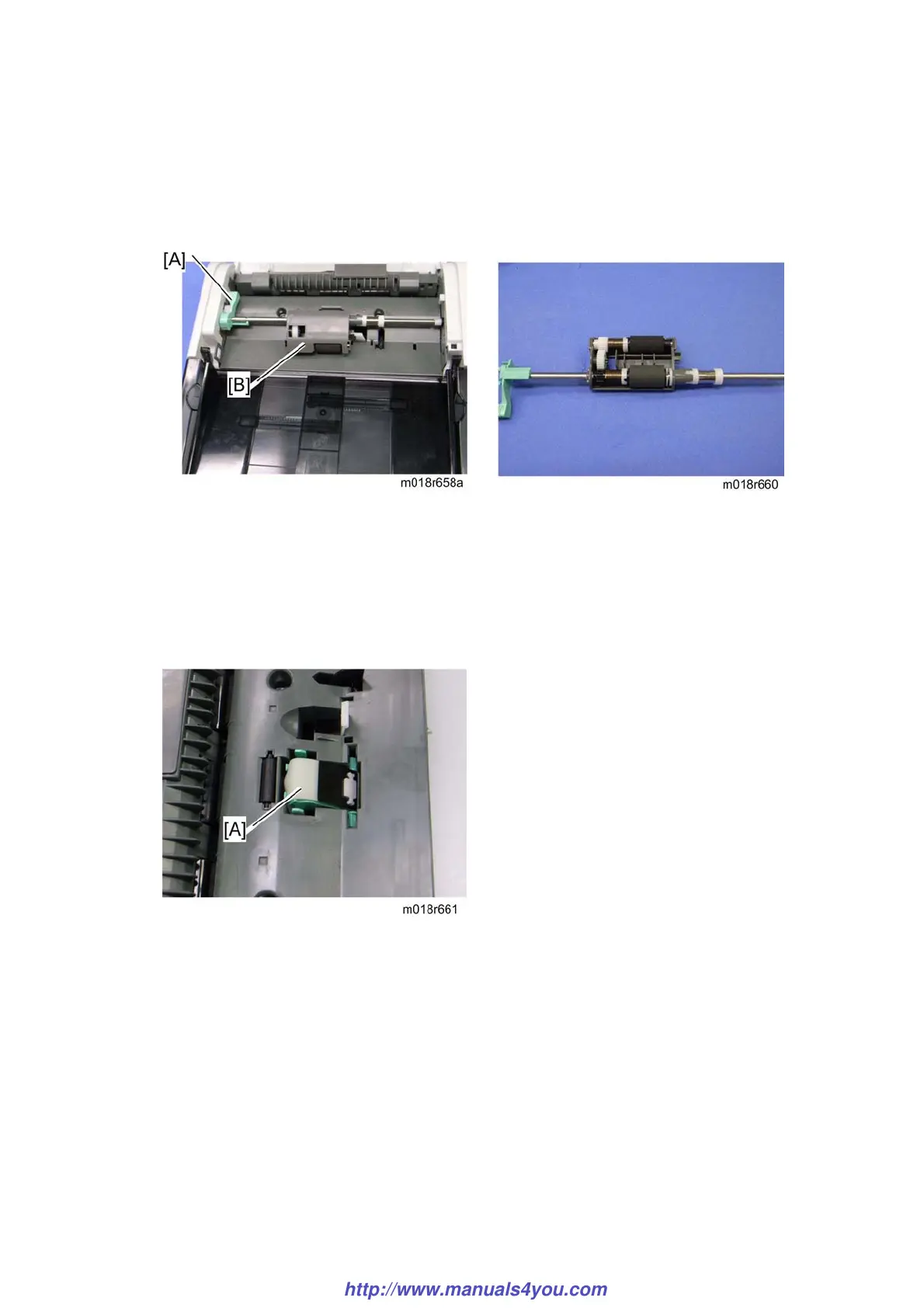

4.12.3 ADF FEED UNIT
1. Open the ADF cover.
2. Release the lock lever [A]
3. ADF feed unit [B]
4.12.4 ADF SEPARATION PAD
1. Open the ADF cover.
2. ADF feed unit ( p.4-62)
3. ADF separation pad [A] (hook x 2, spring x 1)
