Ricoh Aficio SP C232SF Service Manual

Electrical Components
M018/M019 4-44 SM

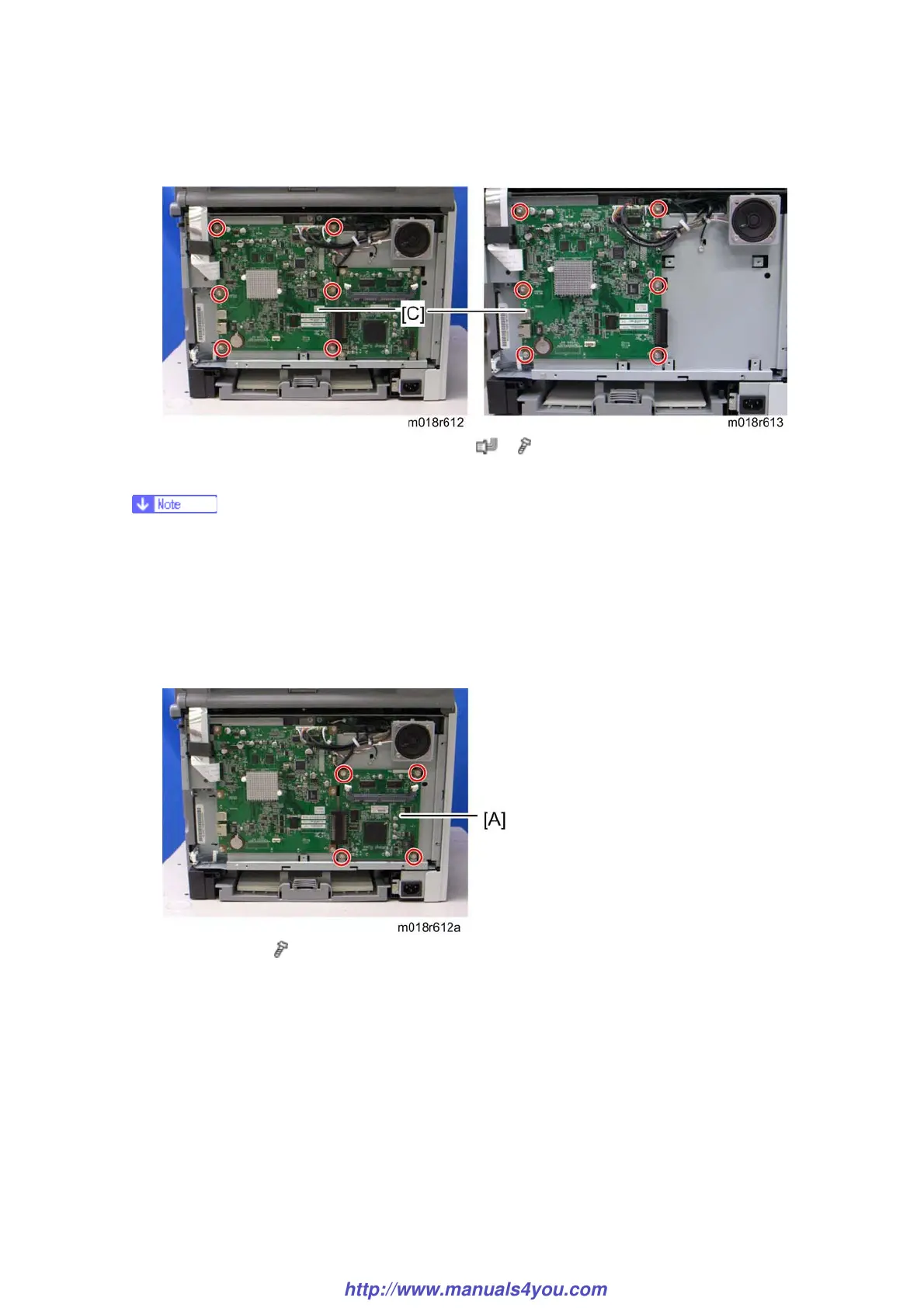

4. Main controller board [C] (flat cable x 1, all
s, x 6)
 The photo above left shows the M019, and the photo above right shows the M018.
PDL Board (M019 only)
1. Rear cover ( p.4-3)
2. Controller box cover (see "p.4-43 "Main Controller Board "" above)
3. Interface bracket (see "p.4-43 "Main Controller Board "" above)
4. PDL board [A] (
x 4)
