4.11 ELECTRICAL COMPONENTS

4.11.1 CONTROLLER BOARD

Main Controller Board

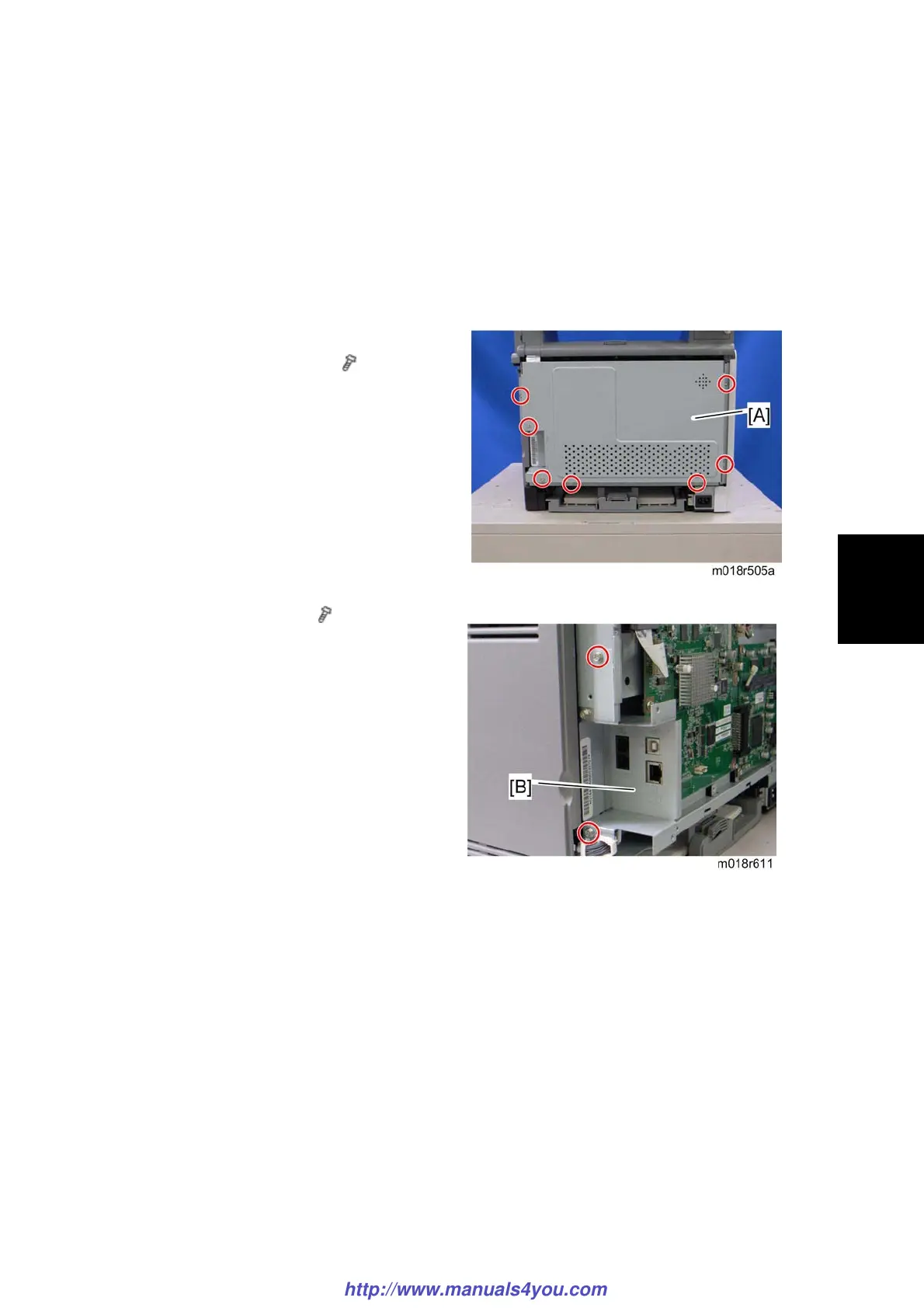

1. Rear cover ( p.4-3)

2. Controller box cover [A] (

x 7)

3. Interface bracket [B] (

x 2)
