Ricoh Aficio SP C232SF Service Manual

Paper Feed Unit
SM 3 G849
Paper Feed
Unit TK1010
(G849)
1.1.4 PAPER FEED ROLLER
1. Top cover (☛ Top Cover)
2. Paper feed clutch (☛ Top Cover)

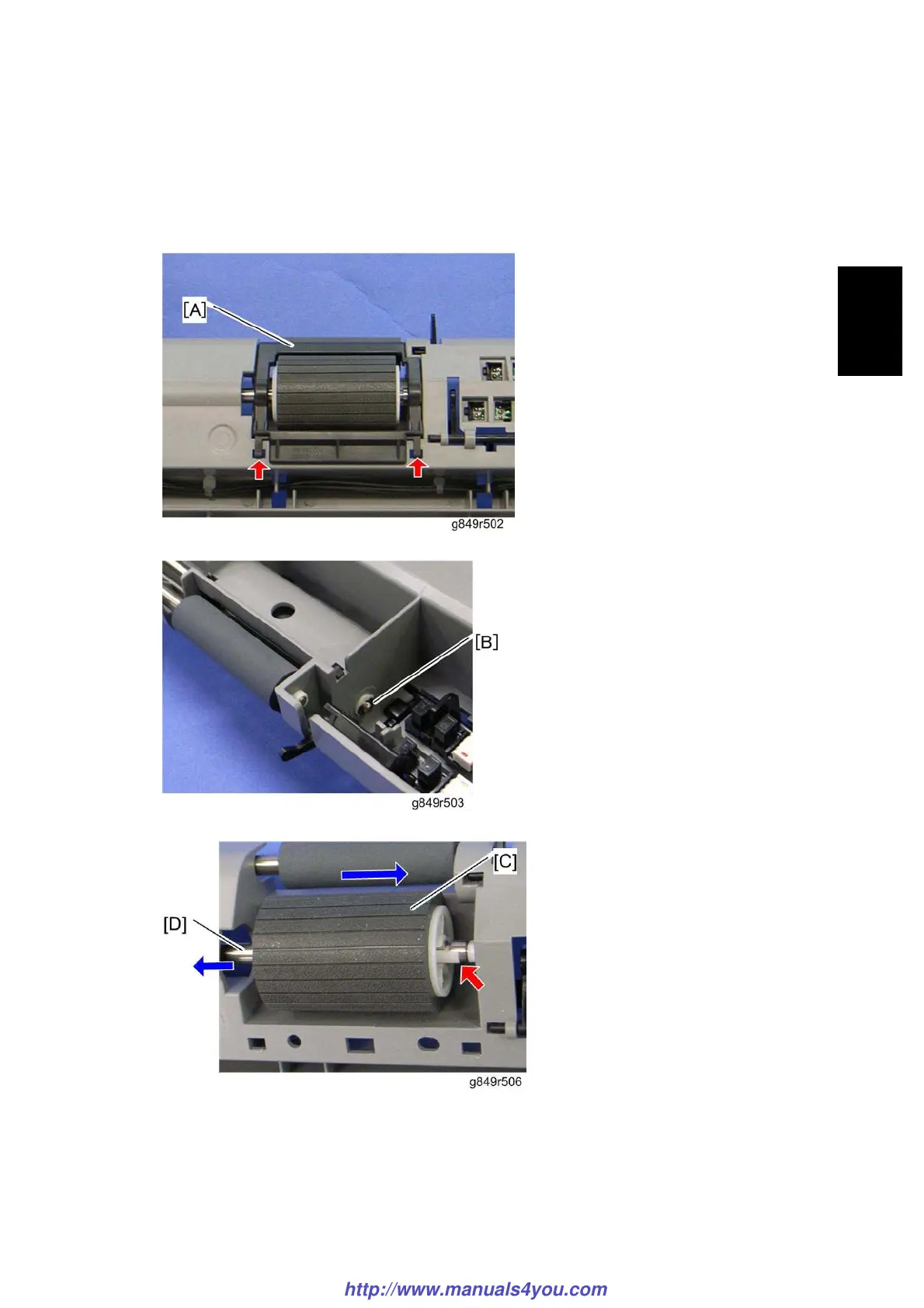

3. Paper guide [A] (hooks)
4. Remove the e-ring [B] at the right edge of the feed roller shaft.
5. Slide the paper feed roller [C] to the right side (hook).
6. Pull out the feed roller shaft [D] to the left side (bushing x 1).
