Ricoh Aficio SP C232SF Service Manual

Scanner
SM 4-73 M018/M019
Replacement
&
Adjustment
4.13.3 SCANNER CARRIAGE UNIT
1. Scanner unit ( p.4-70)
2. Scanner top cover ( p.4-72)

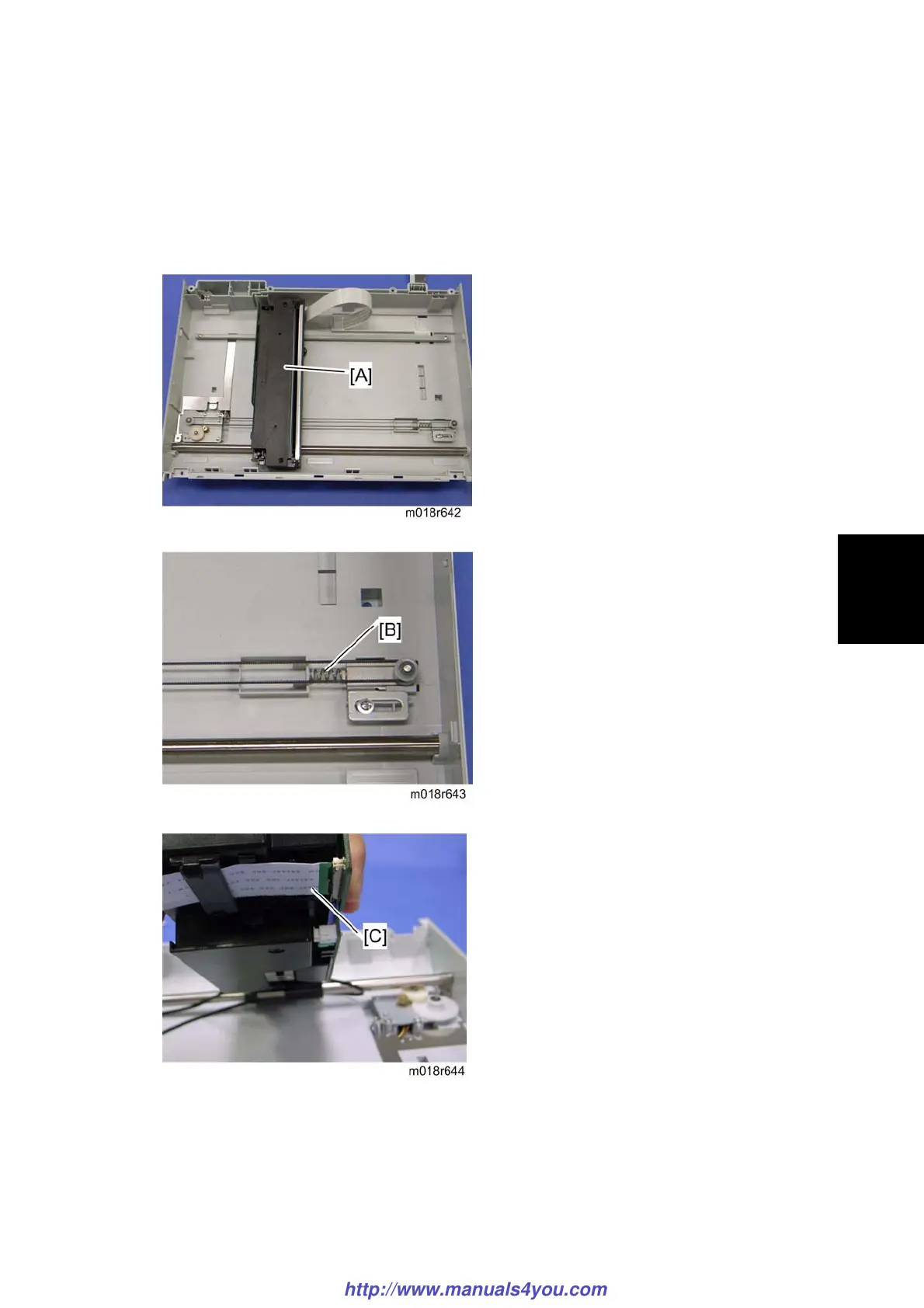

3. Slide the scanner carriage unit [A] to the right side.
4. Remove the timing belt tension spring [B]
5. Remove the flat cable [C] from the scanner carriage unit.
