Ricoh Aficio SP C232SF Service Manual

Image Transfer
SM 4-23 M018/M019
Replacement
&
Adjustment
4.6.6 TM (TONER MARK) SENSOR BASE

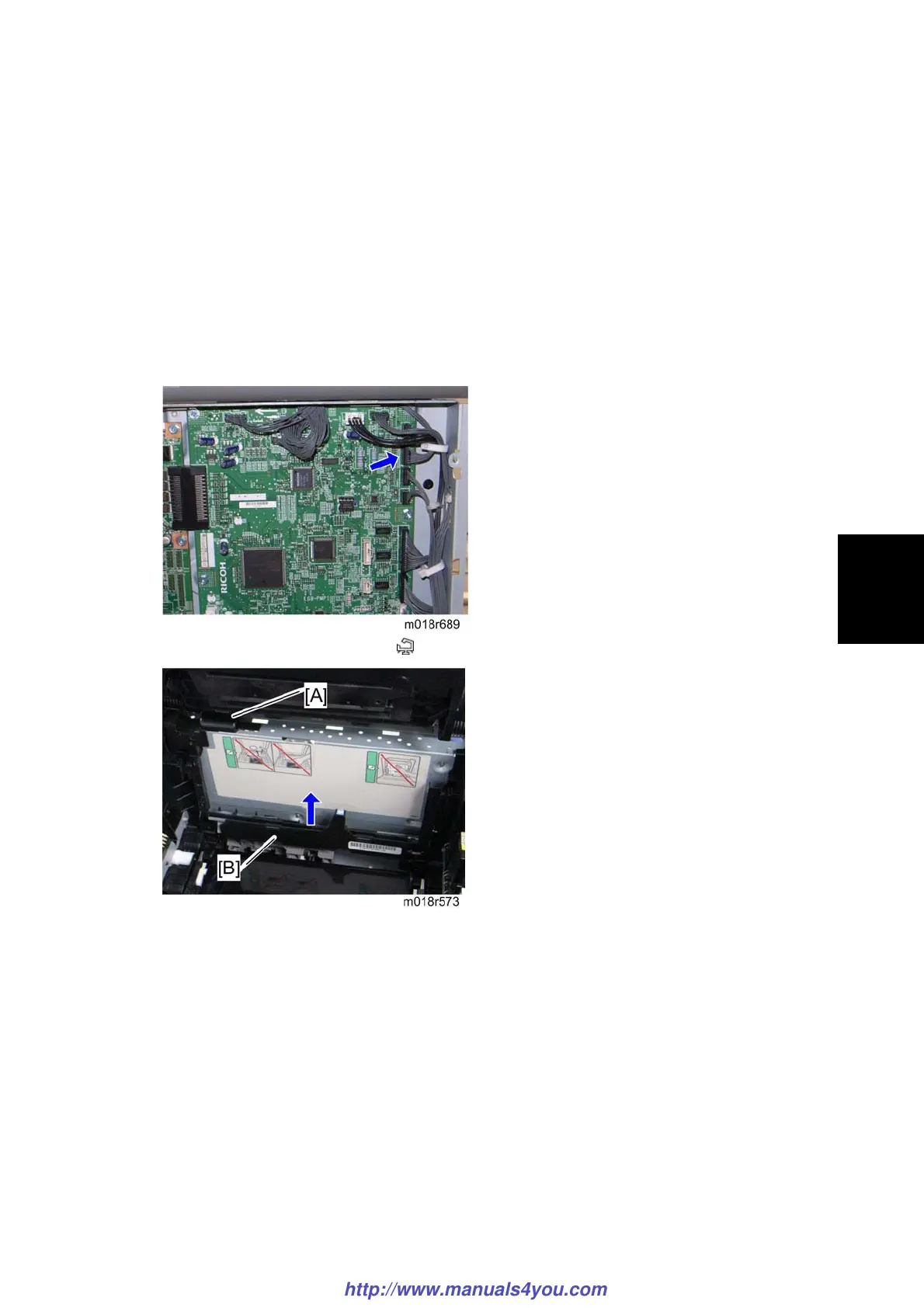

1. Open the top cover.
2. Remove all AIO cartridges ( p.4-12).
3. Slide the ITB unit to the front side or remove it.
4. Rear cover ( p.4-5)
5. Controller box cover ( p.4-43 "Controller Board")
6. Controller bracket ( p.4-45 "EGB (Engine Board)")
7. Disconnect CN306 on the EGB (
x 1).
8. Harness cover [A] (hook)
9. TM sensor base [B]
