Ricoh Aficio SP C232SF Service Manual

Machine Overview
M018/M019 1-2 SM
1.2 MACHINE OVERVIEW

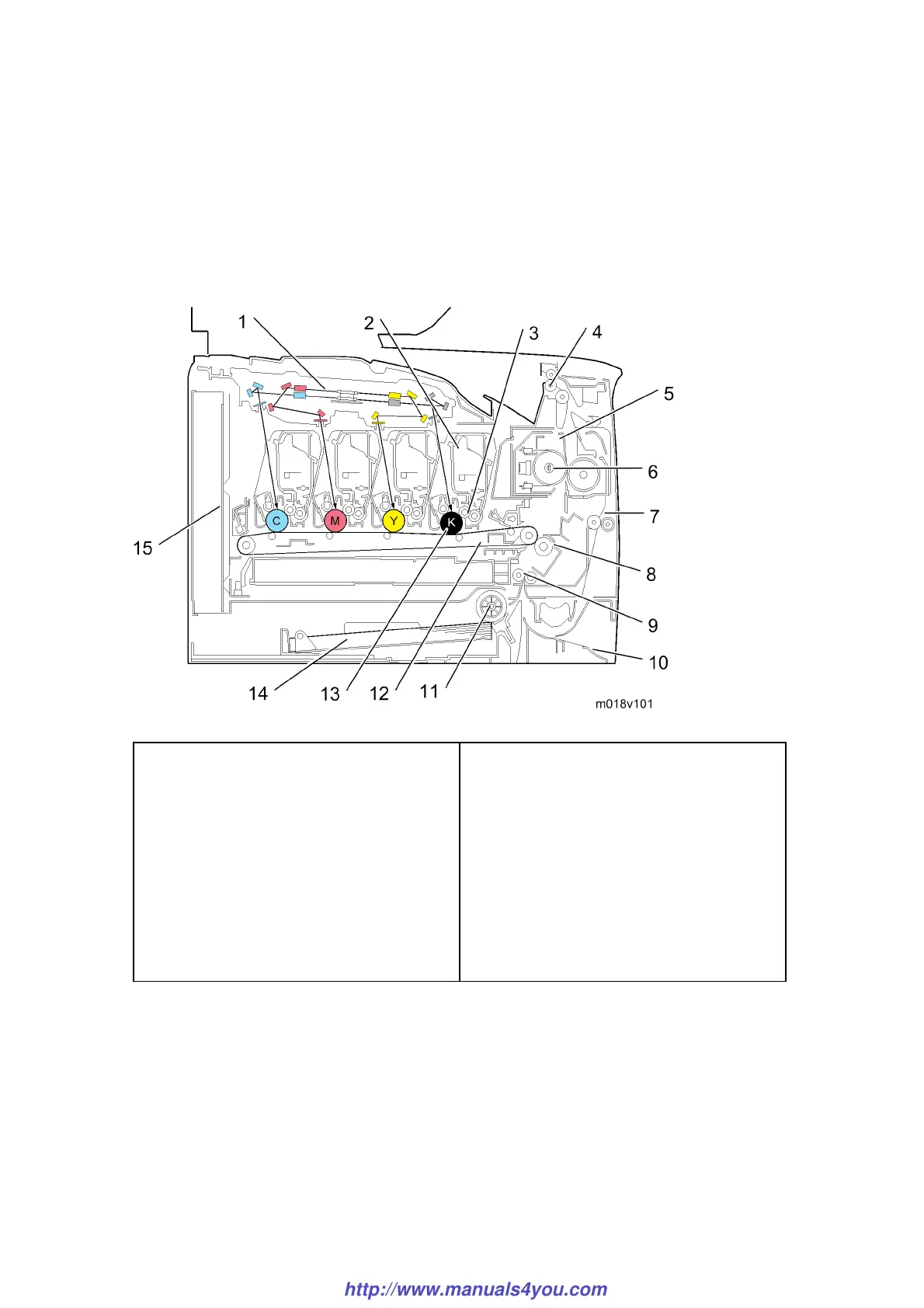

1.2.1 COMPONENT LAYOUT
Engine
1. Laser Optics Housing Unit
2. Print Cartridge (AIO)
3. Development Roller (AIO)
4. Paper Exit
5. Fusing Unit
6. Fusing Lamp
7. Duplex Path
8. Transfer Roller
9. Registration Roller
10. By-pass
11. Paper Feed Roller
12. ITB (Image Transfer Belt) Unit
13. OPC (AIO)
14. Tray 1
15 EGB/Controller
