Ricoh Aficio SP C232SF - Registration Sensor

Paper Transfer
SM 4-31 M018/M019
Replacement
&
Adjustment

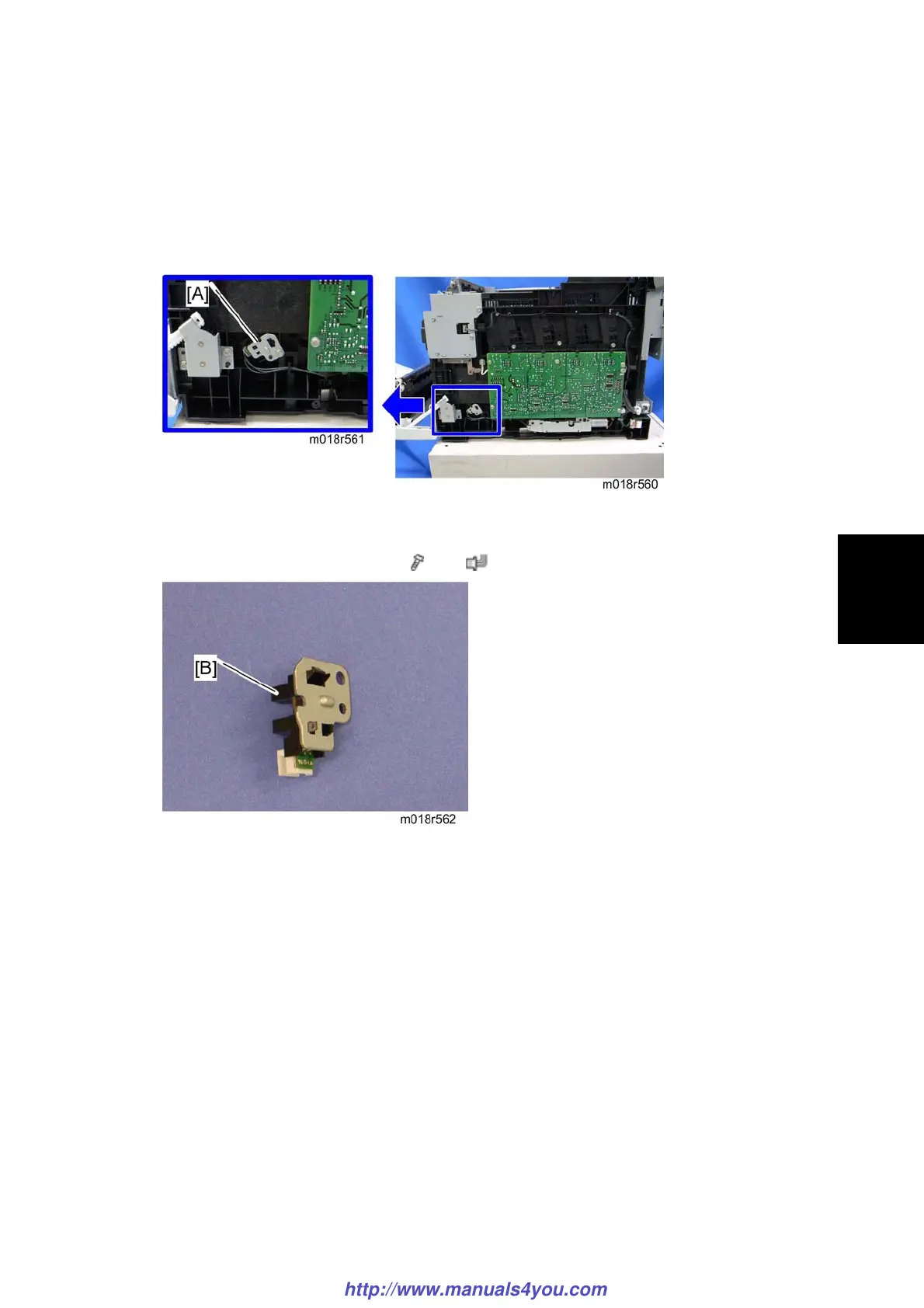

4.7.4 REGISTRATION SENSOR
1. Rear cover ( p.4-3)
2. Right Cover ( p.4-5)
3. Registration sensor assembly [A] (
x 1, x 1)
4. Registration sensor [B] (hooks)
