4.8.2 FUSING LAMP

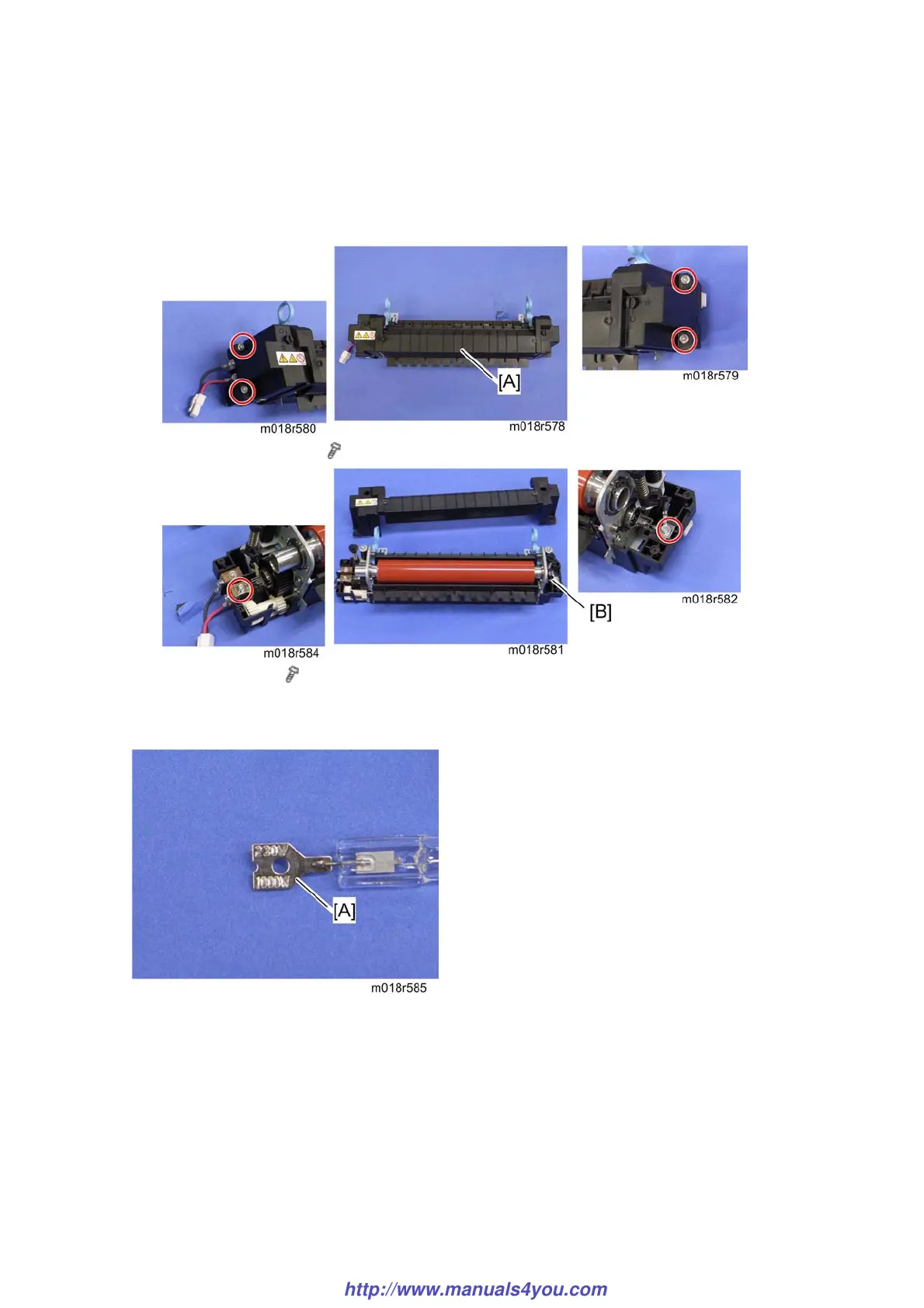

1. Fusing unit ( p.4-33)
2. Fusing front cover [A] (
x 4)
3. Fusing lamp [B] (
x 2, ground cable x 1)
When Reinstalling the Fusing Lamp
The terminal [A], which shows the voltage and power ratings, must be placed at the left side
of the fusing unit (fusing cable side).
