Scanner
M018/M019 4-72 SM

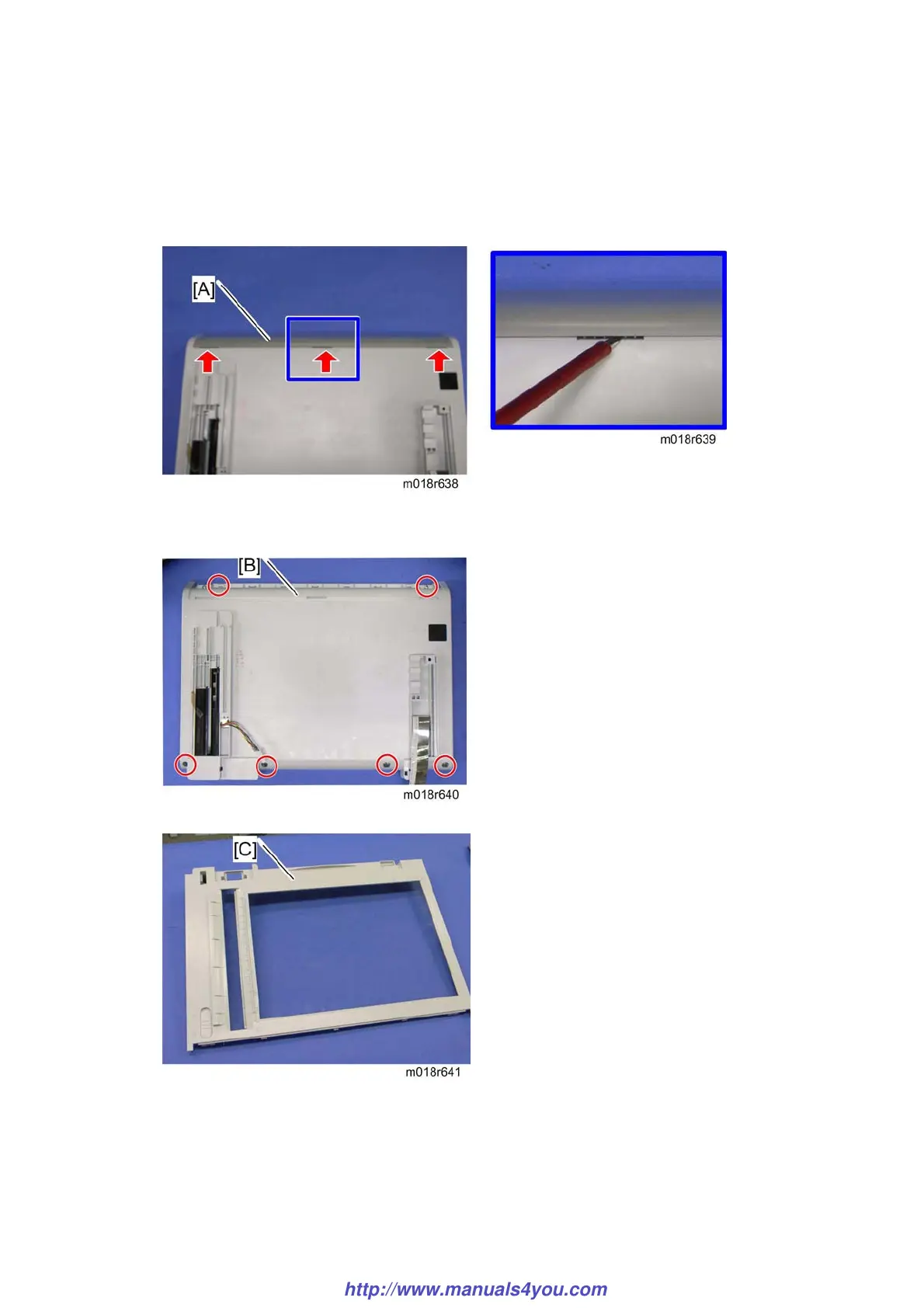

4.13.2 SCANNER TOP COVER
1. Scanner unit ( p.4-70)
2. Turn over the scanner unit.
3. Scanner front cover [A] (tabs x 3)
4. Remove the six screws at the bottom of the scanner base [B].
5. Scanner top cover [C]
