Image Fusing
SM 4-33 M018/M019
Replacement
&
Adjustment
4.8 IMAGE FUSING
Make sure that the fusing unit is cool before you touch it. The fusing unit can be
very hot.
Make sure to restore the insulators, shields, etc after you service the fusing unit.
4.8.1 FUSING UNIT

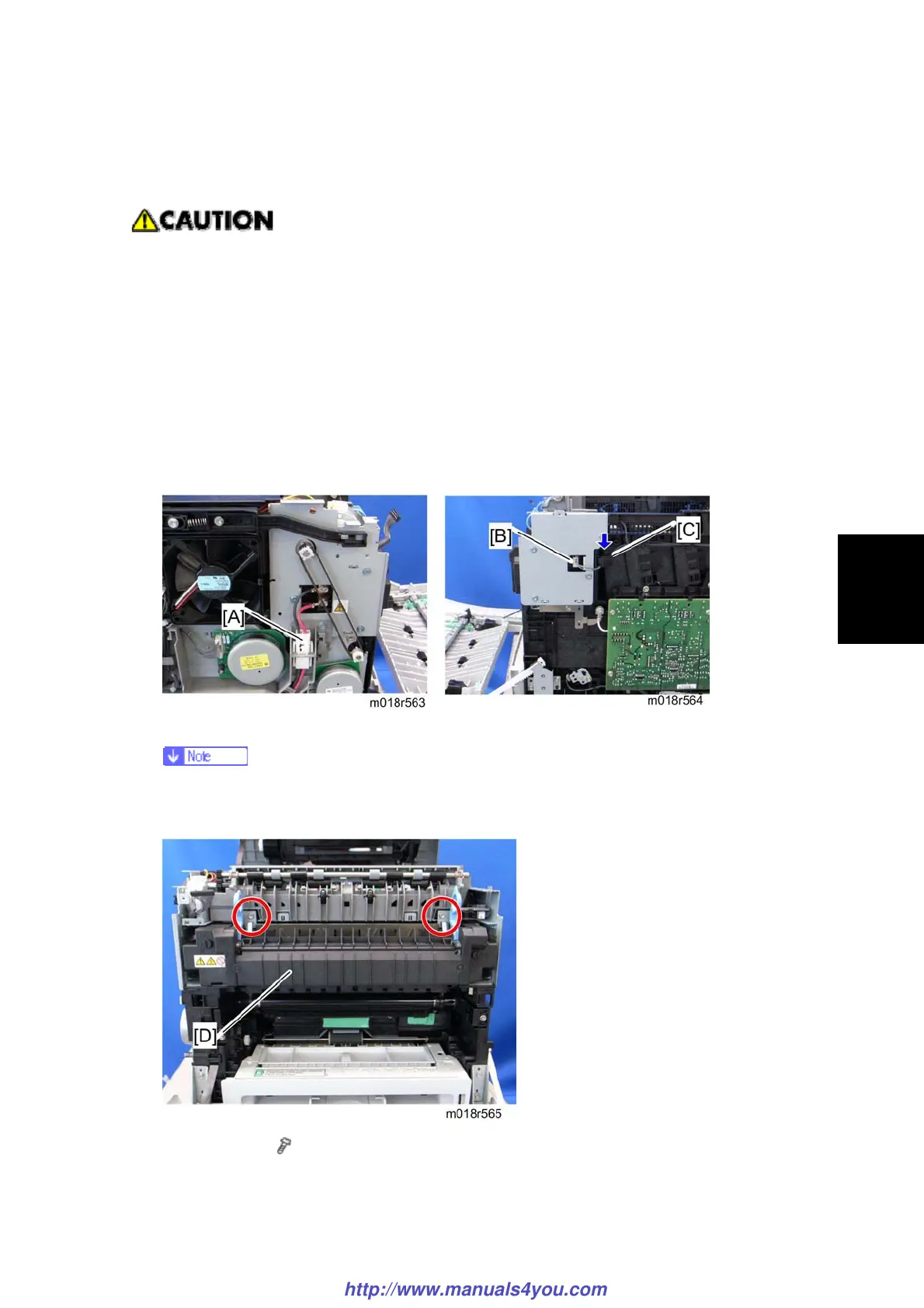

1. Open the front cover.
2. Rear cover ( p.4-3)
3. Right cover ( p.4-5)
4. Left cover ( p.4-5)
5. Disconnect the connectors [A] (hook) [B].
The sponge [C] clamps the harness. Install this sponge in the same position
after reinstalling the fusing unit.
6. Fusing unit [D] (
x 2)
