Ricoh Aficio SP C232SF - Fusing Fan Motor

Electrical Components
M018/M019 4-48 SM
4.11.5 FUSING FAN MOTOR

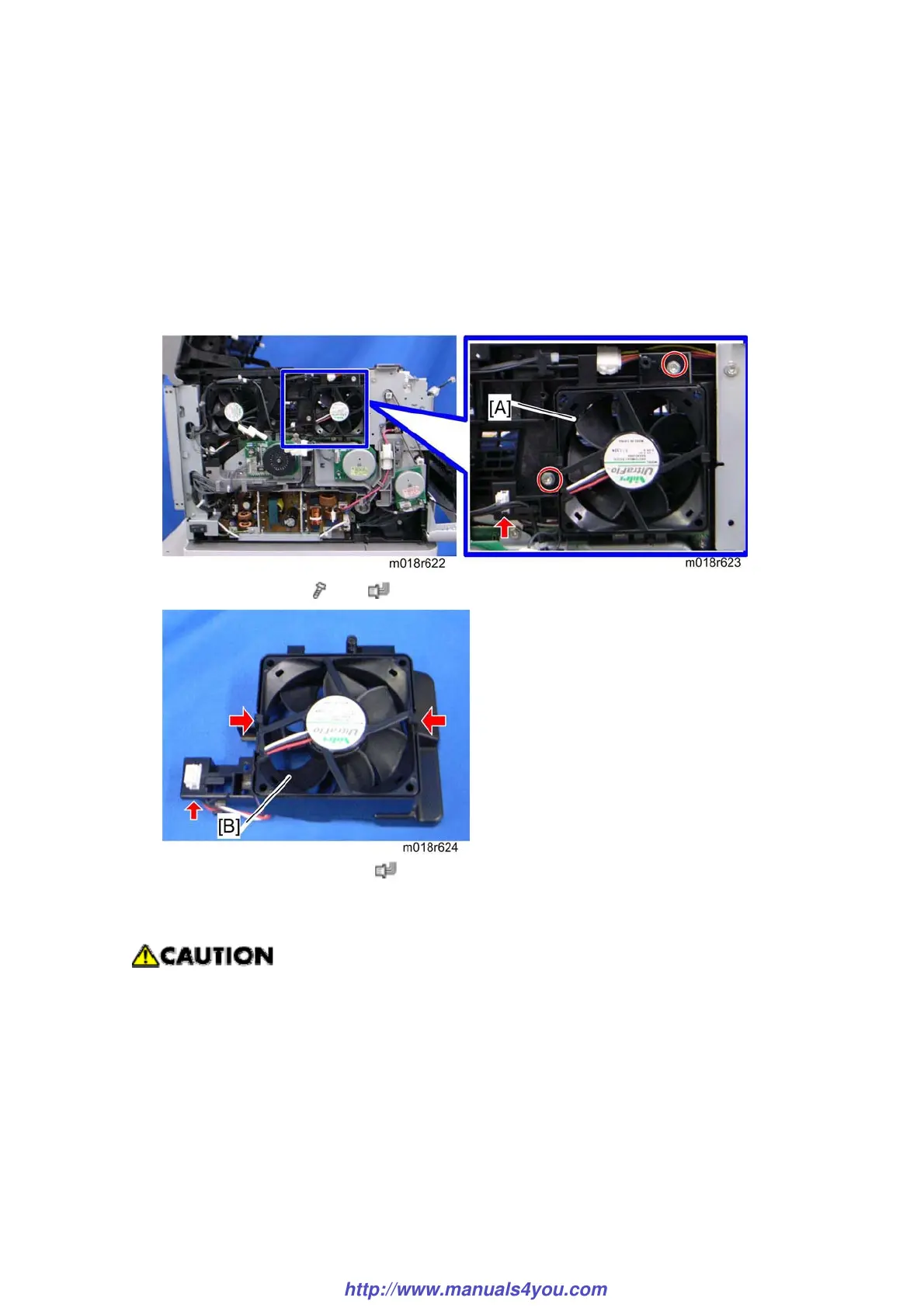

1. Operation panel ( p.4-4)
2. Rear cover ( p.4-3)
3. Left cover ( p.4-5)
4. Interlock switch base ( p.4-47 "Interlock Switches")
5. Fusing fan base [A] (
x 2, x 1)
6. Fusing fan motor [B] (hooks,
x 1)
 Install the fusing fan motor with its decal facing the outside of the machine.
