Ricoh Aficio SP C232SF Service Manual

Paper Transfer
M018/M019 4-30 SM

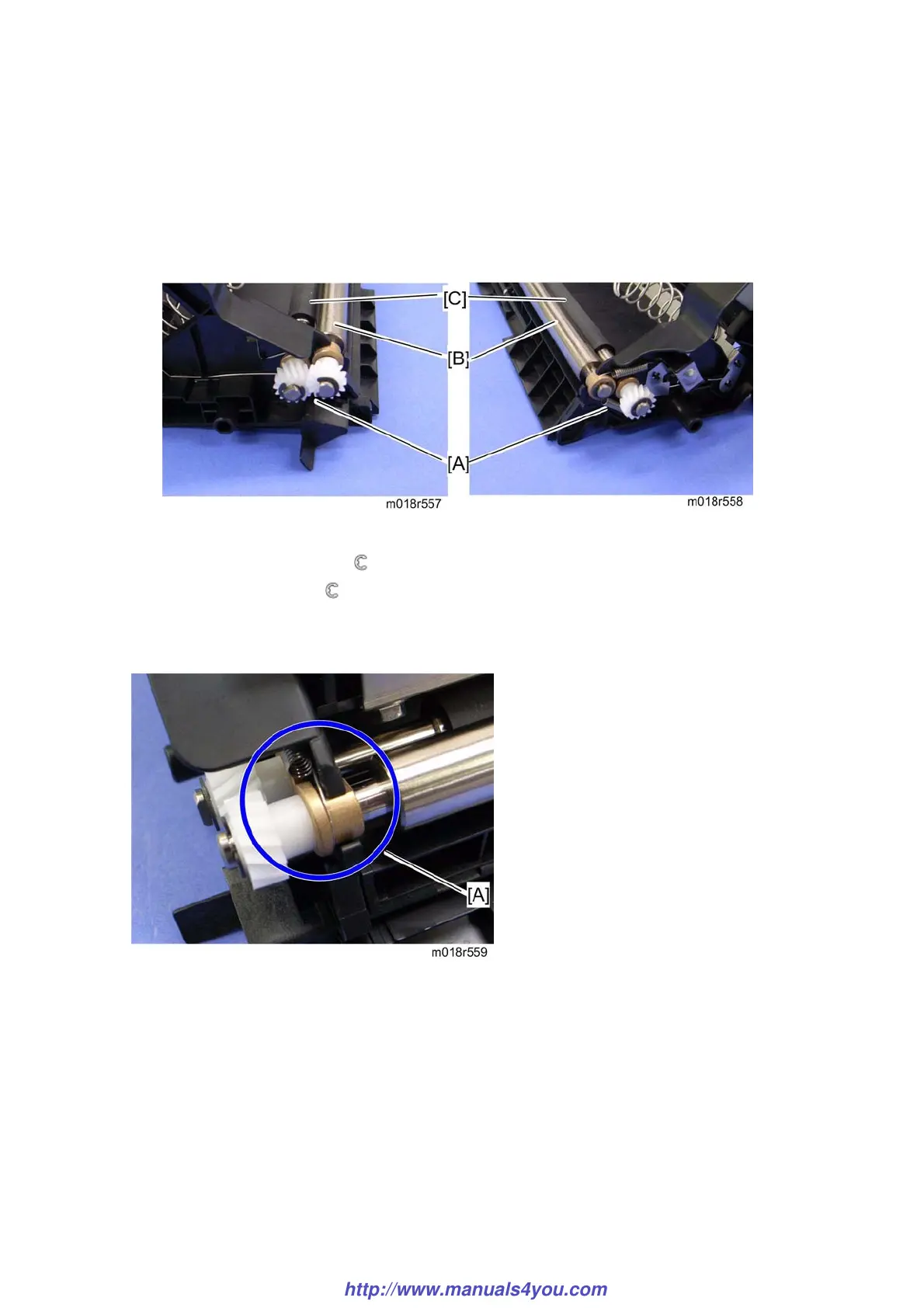

4.7.3 REGISTRATION ROLLER
1. Transfer unit ( p.4-27)
2. Transfer roller unit ( p.4-28)
3. Tension springs [A] (both sides)
4. Registration idle roller [B] ( x 2, gear x 1, bushing x 2)
5. Registration roller [C] (
x 2, gear x 2, bushing x 2)
Reassembling the registration roller unit
When installing the tension spring, make sure that the tension spring correctly hooks onto
the bushing of the registration idle roller as shown above [A].
