Exchange and Replace Procedure
SM Appendix 5-3 M018/M019
Appendix:
Machine
Swap

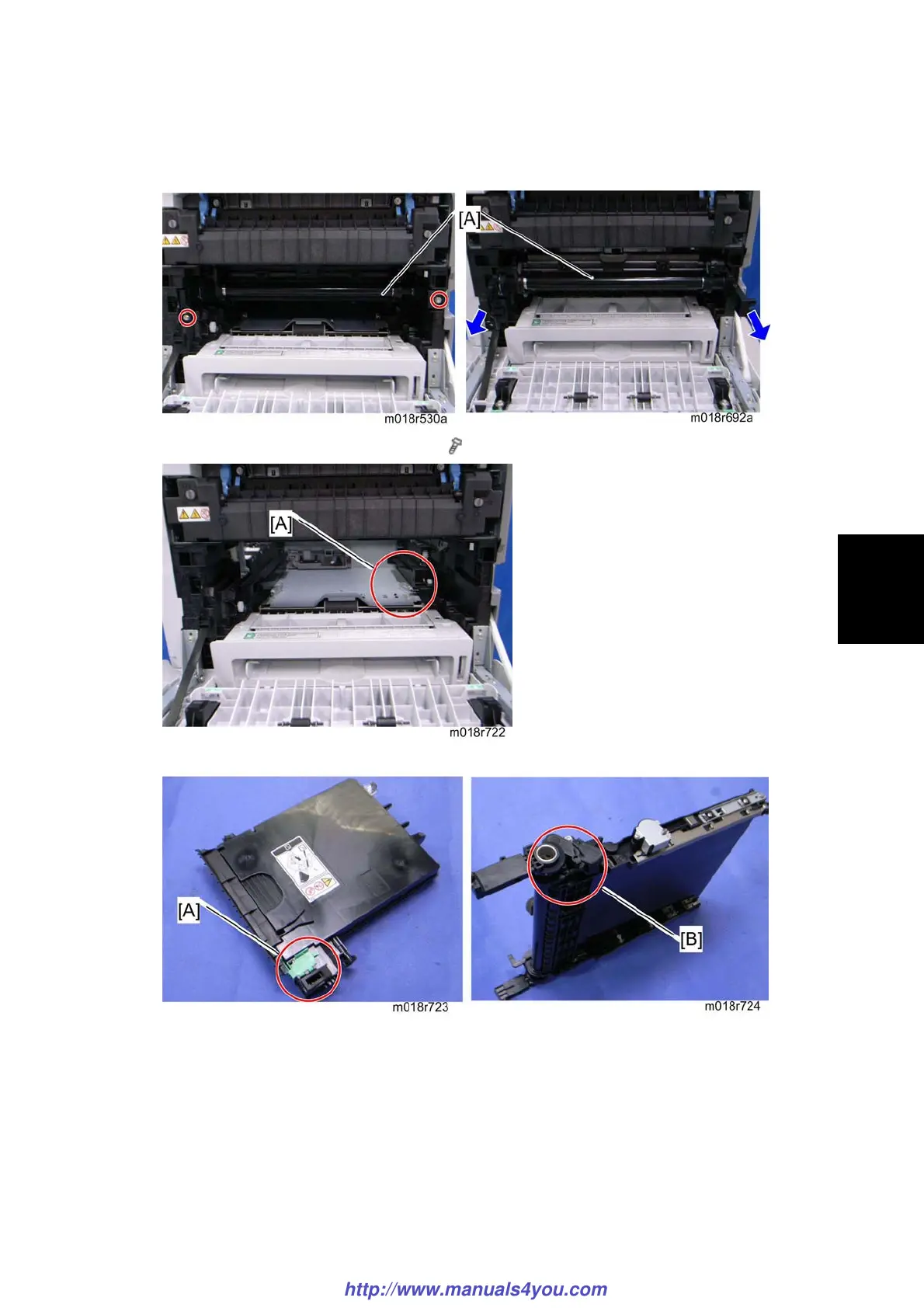

6. Move the guide plate [B] underneath the fusing unit to the left, and then remove it.
7. Pull out the image transfer belt unit [A] (
x 2).
8. Clean inside the machine, especially around the circled area [A].
9. Clean the circled area at the waste toner bottle [A] and circled area [B] at image transfer
belt unit.
10. Reassemble the machine.
