Ricoh Aficio SP C232SF - Page 86

Electrical Components
SM 4-51 M018/M019
Replacement
&
Adjustment
Interlock Switches")
7. Fusing fan base ( p.4-48 "Fusing Fan Motor")
8. Drive unit ( p.4-13 "Black AIO Motor")
9. Take the harnesses aside around the LSU fan base [A].
10. LSU fan base [A] (
x 2, x 1)

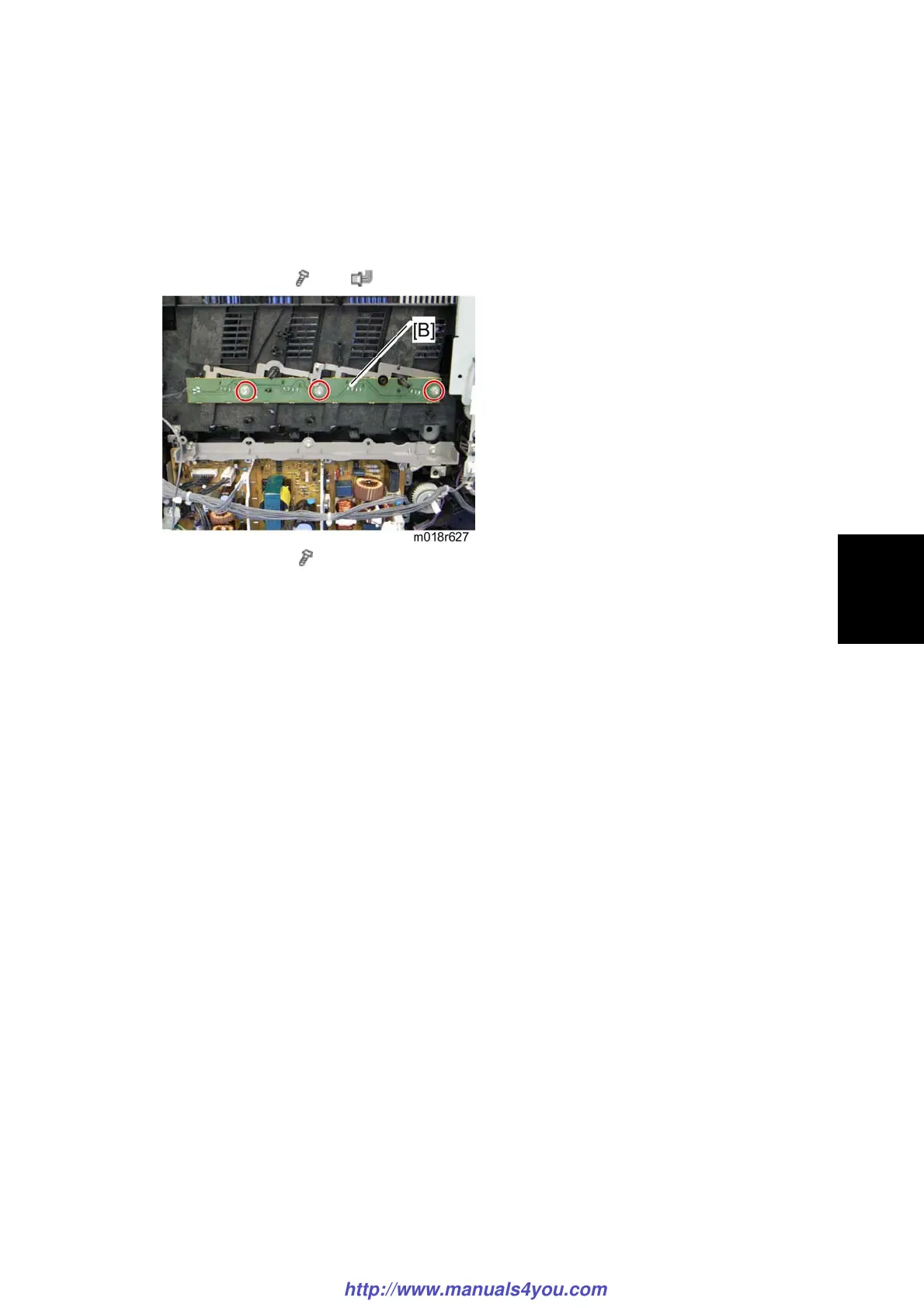

11. ID Chip Board [B] ( x 3)
