Ricoh CH-C1 - RTB 45: SC525-02

Technical Bulletin PAGE: 1/4
Model: Model CH-C1
Date: 08-Nov-13
No.: RD135045
Subject: SC525-02
Prepared by: Takeshi Toriumi
From: 1st Tech Service Sect. MFP/P Tech Service Dept.
Classification:
Troubleshooting
Mechanical
Paper path
Product Safety
Part information
Electrical
Transmit/receive
Other ( )
Action required
Service manual revision
Retrofit information
Tier 2
Symptom
SC525-02 (Drawer Unit Handle Sensor Error) may occur.
Cause

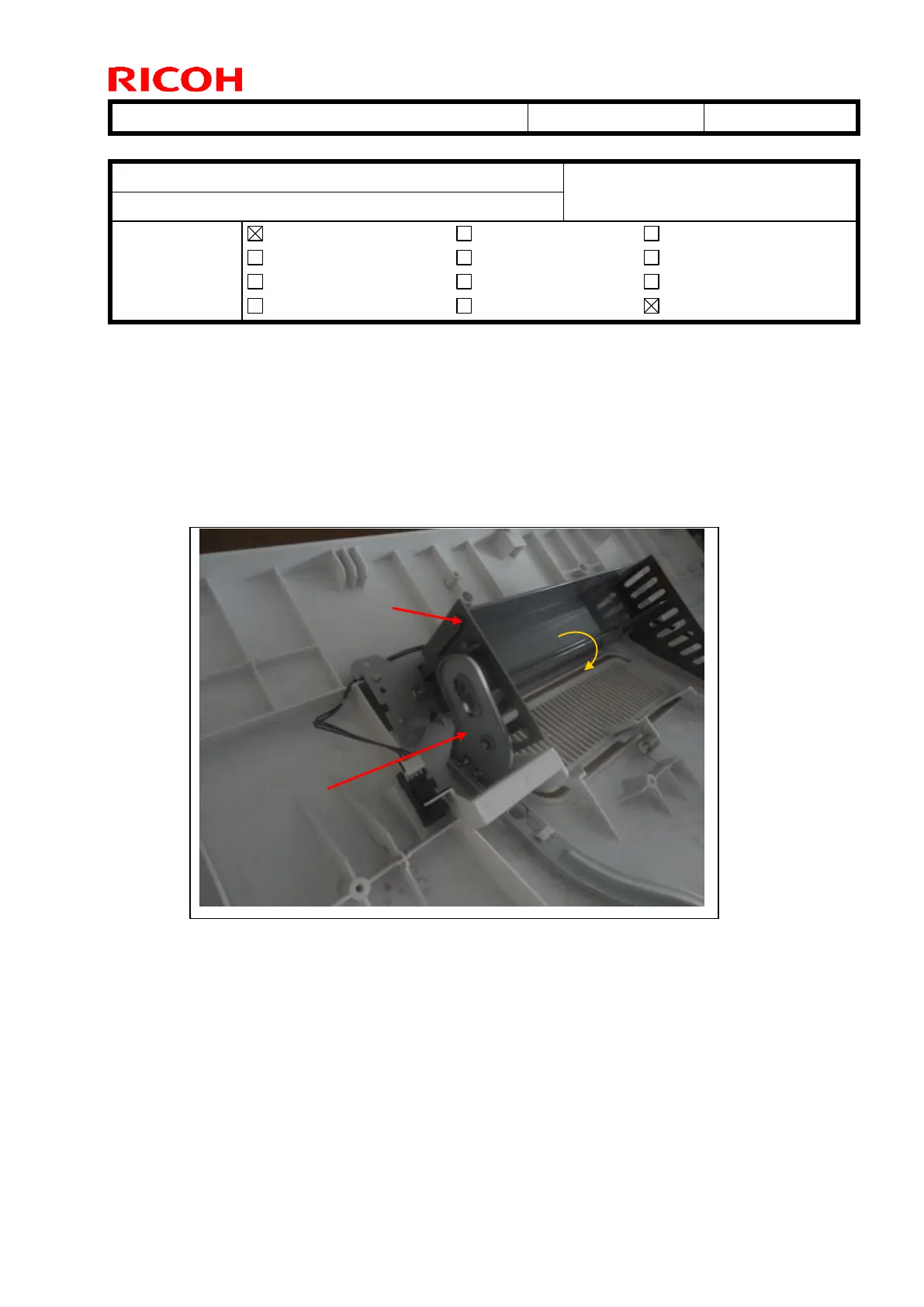

Drawer unit handle [A] may not return naturally to its normal position because the shape of handle [A] and
lever [B] is not correct after the user pulled the drawer handle [C] in the arrowed direction below. As a result,
the sensor cannot detect the handle in the normal position.
[A]
[B]
