Technical Bulletin PAGE: 1/2
Model: CH-C1
Date: 10-Jun-14
No.: RD135135
Subject:SC486 (Bottle Waste Toner Lock Detection Error)
Prepared by: Takeshi Toriumi
From: 1st MFP Tech Service Sec., MFP Tech Service Dept.,
Classification:
Troubleshooting
Mechanical
Paper path
Product Safety
Part information
Electrical
Transmit/receive
Other (Firmware)
Action required
Service manual revision
Retrofit information
Tier 2
SYMPTOM
SC486 will occur even after a new waste toner bottle is set.
CAUSE

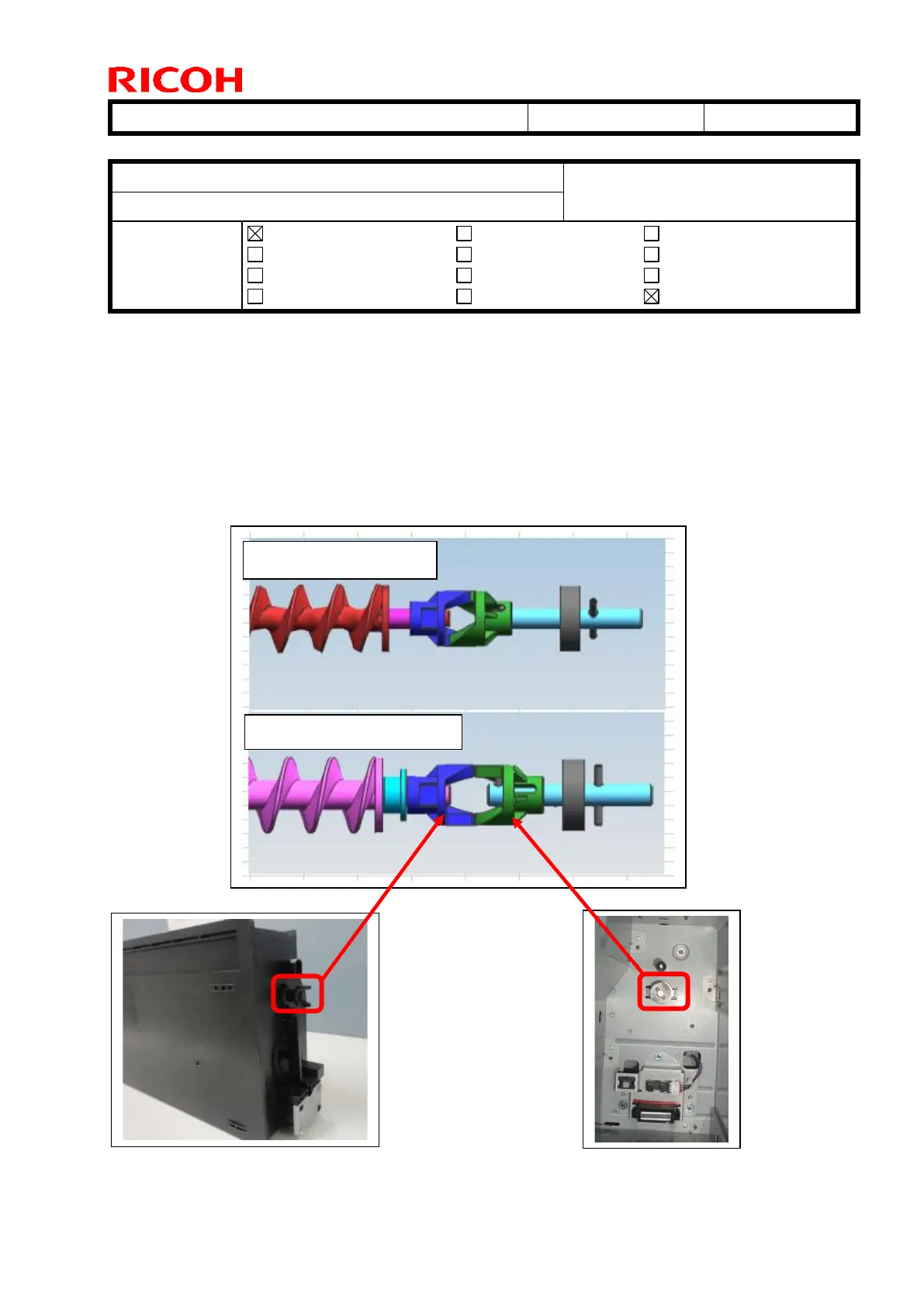

The tips of couplings [A] and [B] contact each other when the waste toner bottle is installed, which
prevents them from engaging properly. As a result, coupling [B] is pushed into the machine in the
“disengaged position” (see below), preventing the waste toner transport coil from rotating.
[A]
[B]
Engaged Position
Disengaged Position
