Ricoh CH-C1 - RTB 136 a: Drawer unit Slide Rail replacement procedure

Technical Bulletin PAGE: 1/17
Reissued:4-Jul-14
Model: CH-C1
Date: 19-Jun-14
No: RD135136a
RTB Reissue
The items in bold italics were corrected or added.

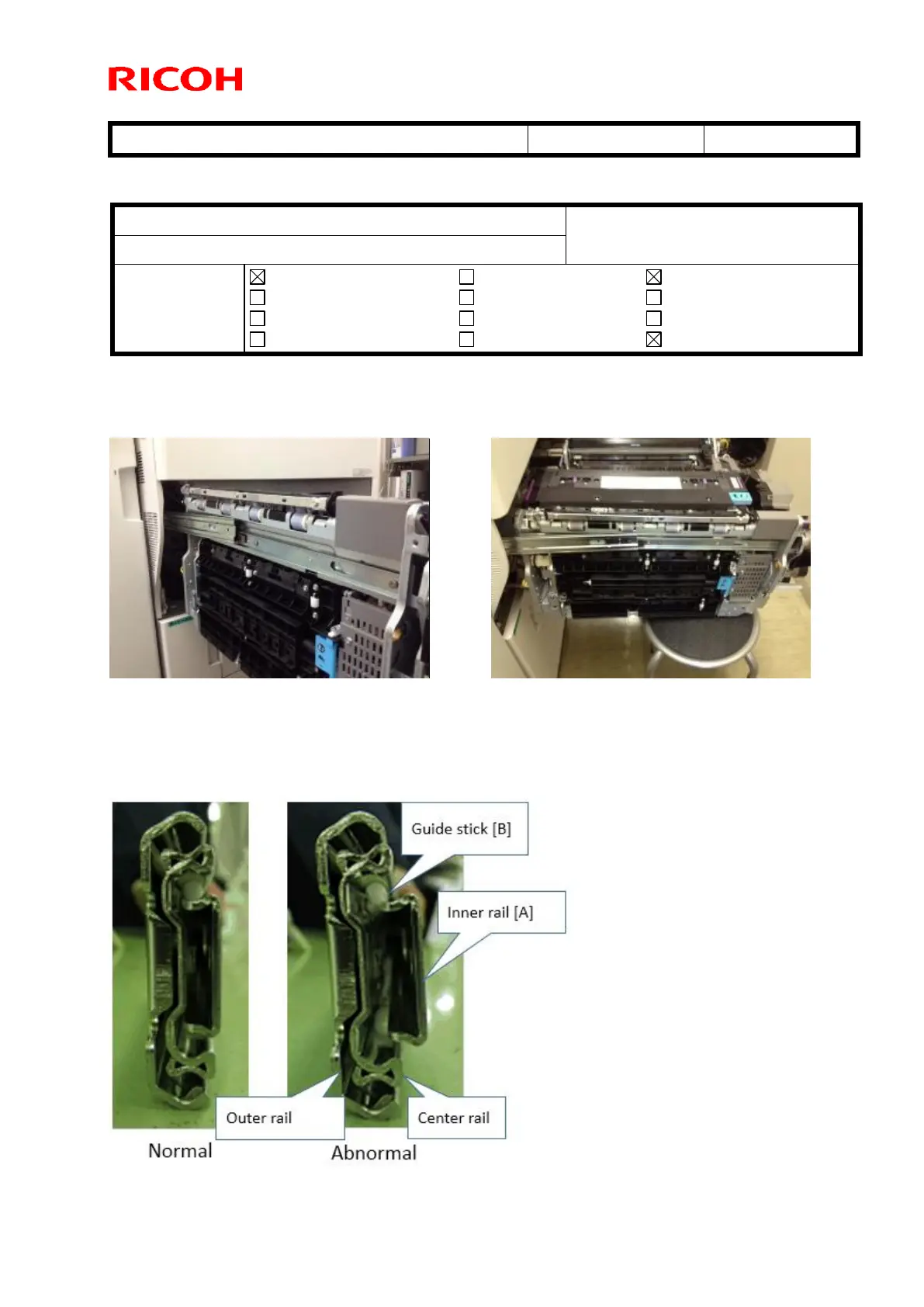

SYMPTOM
The drawer unit may be derailed off the slide rail and fall out of the machine in the worst case when
the unit is pulled out to clear a jam.
CAUSE
Insufficient clearance between the inner rail [A] and guide stick [B]
Due to the insufficient clearance, the inner rail [A] separates from the guide stick [B]. Since the unit
is fixed to the inner rail with screws, when this happens, the drawer unit falls out of the machine.
Subject: Drawer unit Slide Rail replacement procedure
Prepared by: Takeshi Toriumi
From: 1st MFP Tech Service Sec. MFP Tech Service Dept.
Classification:
Troubleshooting
Mechanical
Paper path
Product Safety
Part information
Electrical
Transmit/receive
Other ( )
Action required
Service manual revision
Retrofit information
Tier 2
