Ricoh CH-C1 - RTB 120: SR4090;SR4100: Stapler unit replacement

Technical Bulletin PAGE: 1/10
Model: CH-C1 Office/Pro
Date: 26-May-14
No.: RD135120
Service Manual Correction
Please add the following corrections to your field service manual in this section:
1. Replacement and Adjustment > Stapler Unit (Pg. 34-41)
Stapler Unit

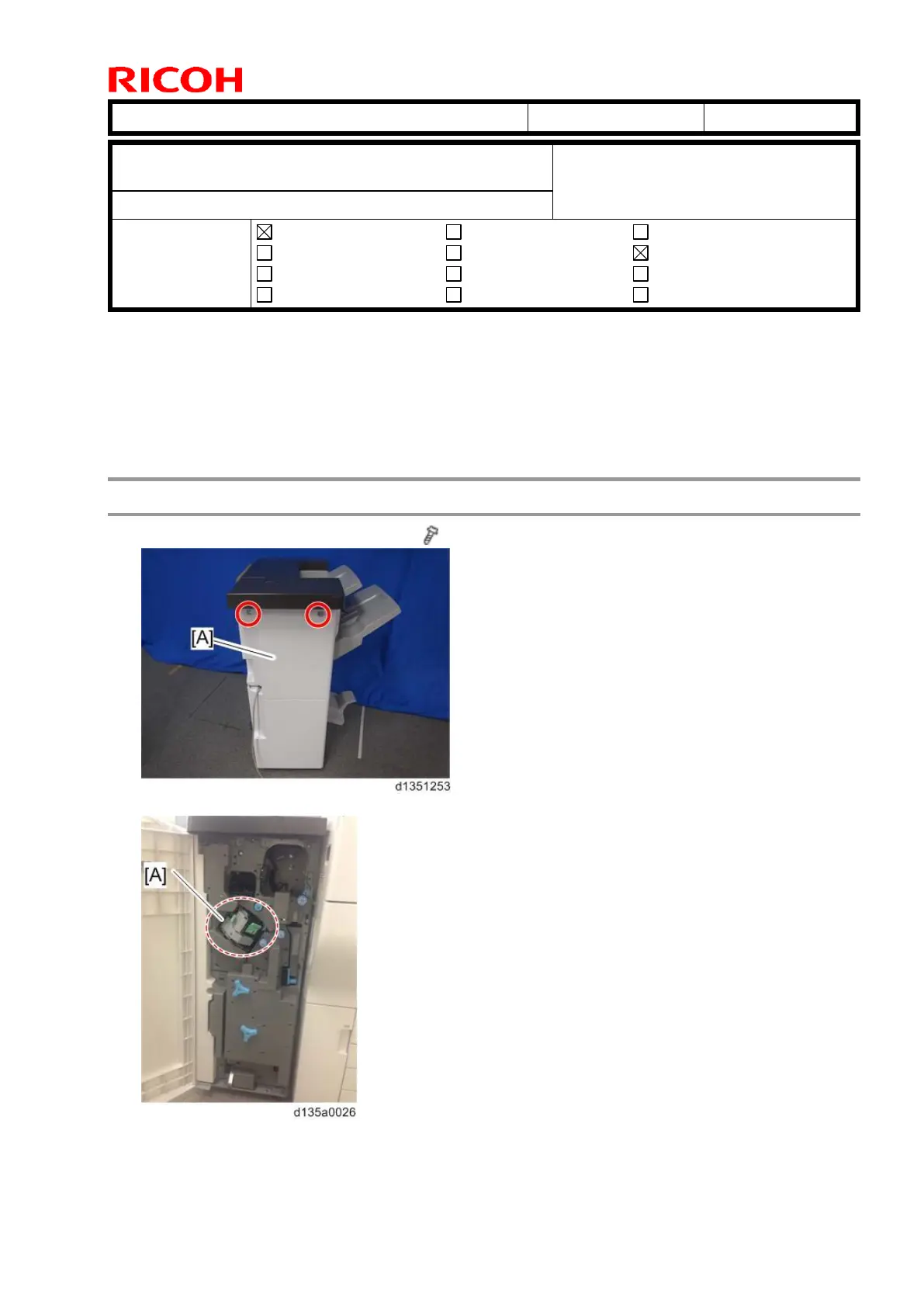

1. Remove the rear upper cover [A]. ( x 2)
2. Open the front door and push the stapler [A] to the rear side of the finisher.
Subject: SR4090/SR4100: Stapler unit replacement
procedure
