Ricoh CH-C1 - RTB 126: New brackets to prevent JAM18

Technical Bulletin PAGE: 1/3
Model: CH-C1
Date:12-May-14
No: RD135126
Subject: New brackets to prevent JAM18
Prepared by: Takeshi Toriumi
From: 1st MFP Tech Service Sec., MFP Tech Service Dept.,
Classification:
Troubleshooting
Mechanical
Paper path
Product Safety
Part information
Electrical
Transmit/receive
Other ( )
Action required
Service manual revision
Retrofit information
Tier 2

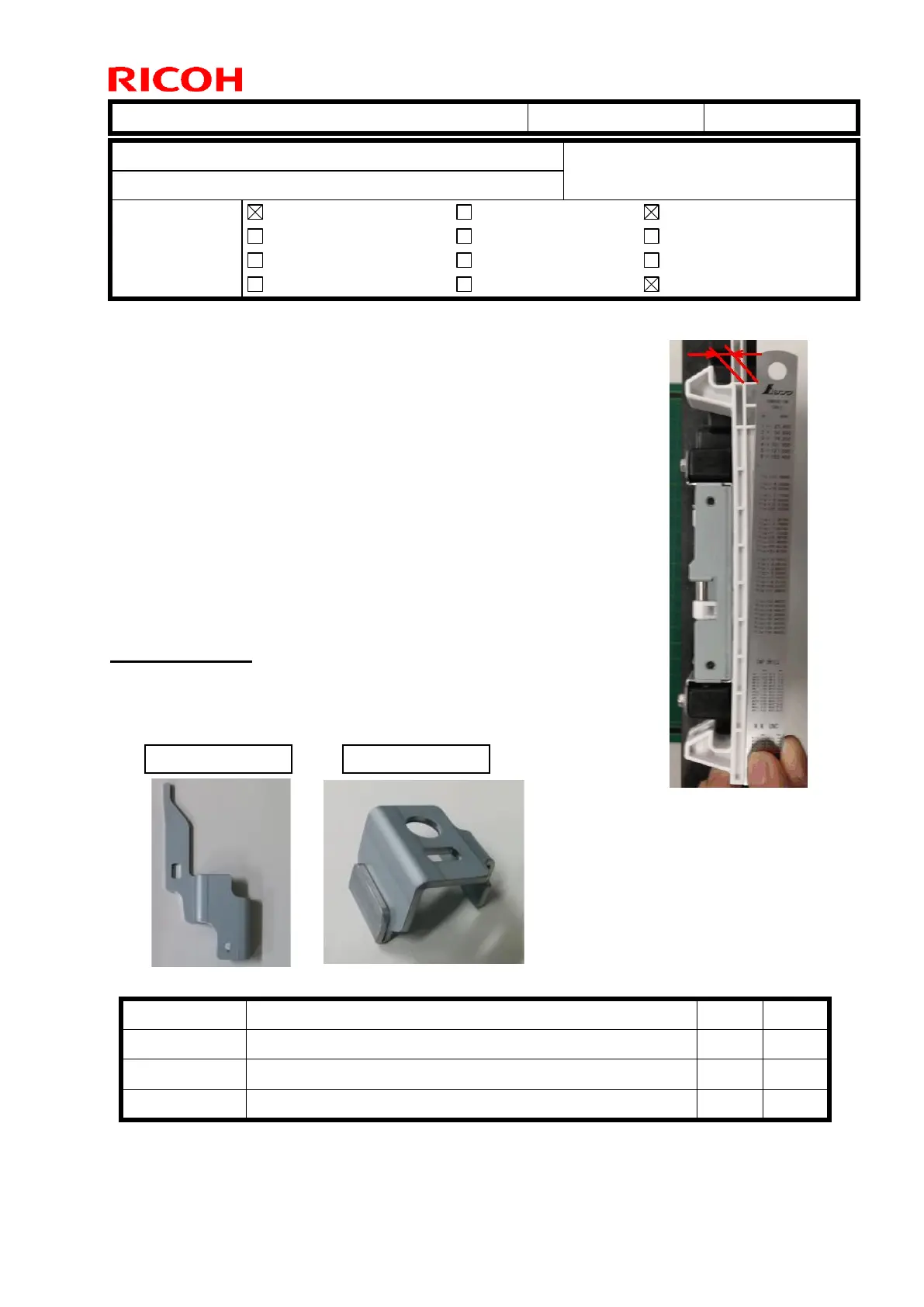

SYMPTOM
JAM18 (Main Relay Sensor: Late Jam) may occur.
CAUSE
Machine internal pressure causes the lock lever of the vertical
transport door to deform (see the photo to the right) over time.
As a result, the door is incompletely shut and creates an
unwanted gap in the paper path where the leading edge of the
paper curls.
SOLUTION
Production line:
The following 2 brackets were added to prevent the locking
lever from deforming and shifting the position of the lock on the
mainframe.
P/N
Description
Q’ty
Note
D1356641
BRACKET:FIX:LEVER:VERTICAL TRANSPORT
1
Add
D1356642
BRACKET:FIX:LEVER:VERTICAL TRANSPORT:LOWER
1
Add
04583012N
HEXAGON HEAD TAPPING SCREW:3X12
1
Add
P/N: D1356641
P/N: D1356642
