Ricoh CH-C1 - RTB 128: Tandem Tray does not lift-up

Technical Bulletin PAGE: 1/4
Model: CH-C1
Date: 26-Mar-14
No: RD135128
Subject: Tandem Tray does not lift-up
Prepared by: Takeshi Toriumi
From: 1st MFP Tech Service Sec. MFP Tech Service Dept.
Classification:
Troubleshooting
Mechanical
Paper path
Product Safety
Part information
Electrical
Transmit/receive
Other ( )
Action required
Service manual revision
Retrofit information
Tier 2
SYMPTOM
Tandem Tray does not lift up.
CAUSE
The feeler of the right tandem tray end fence is retracted and prevents the system from
detecting proper setting of the tray. This happens because the pin attached to the shaft
that rotates to lift up the bottom plate of the tray is not completely engaged with the
coupling.

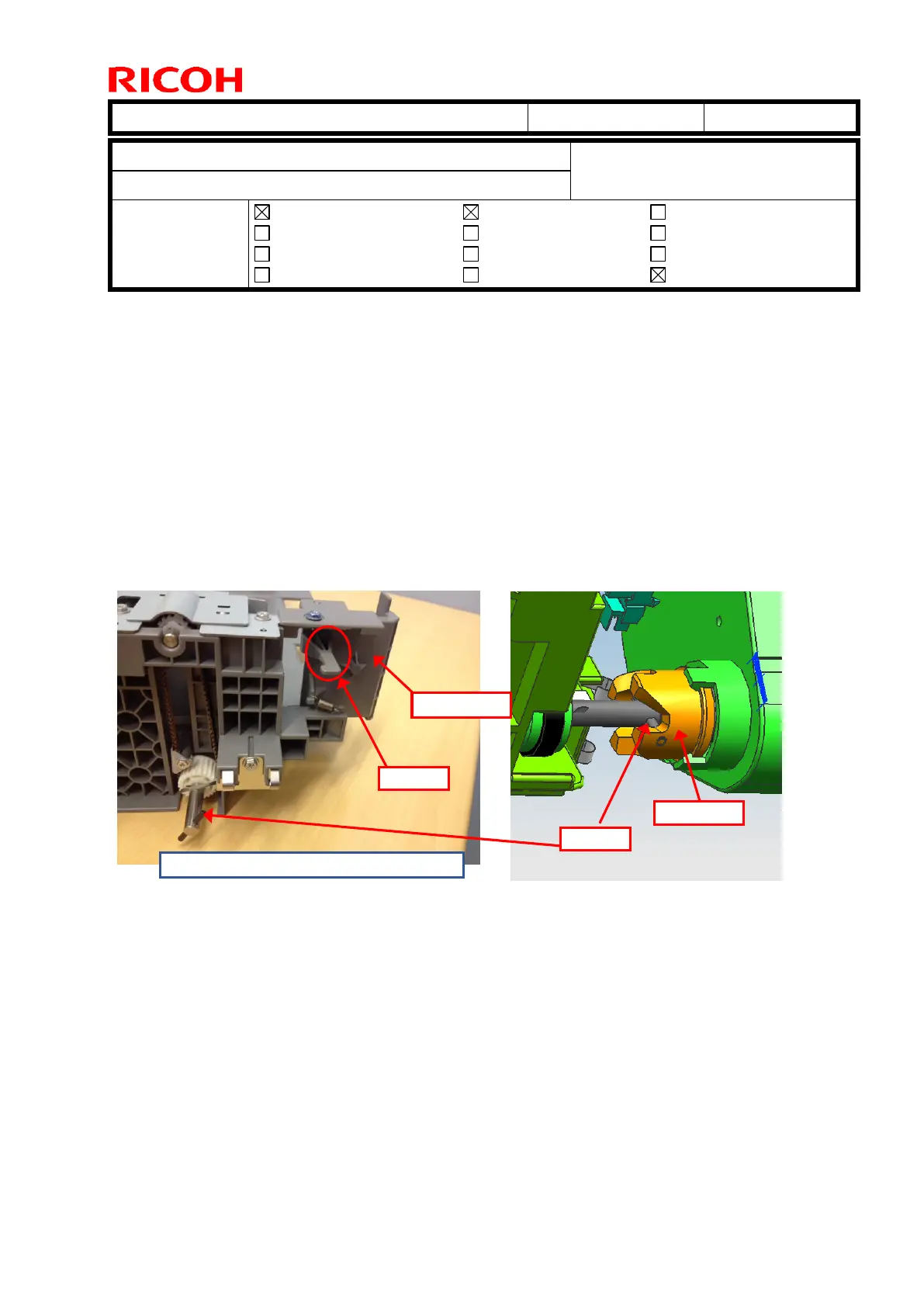

End fence
Feeler
Right tandem tray: view from rear
Coupling
Pin
