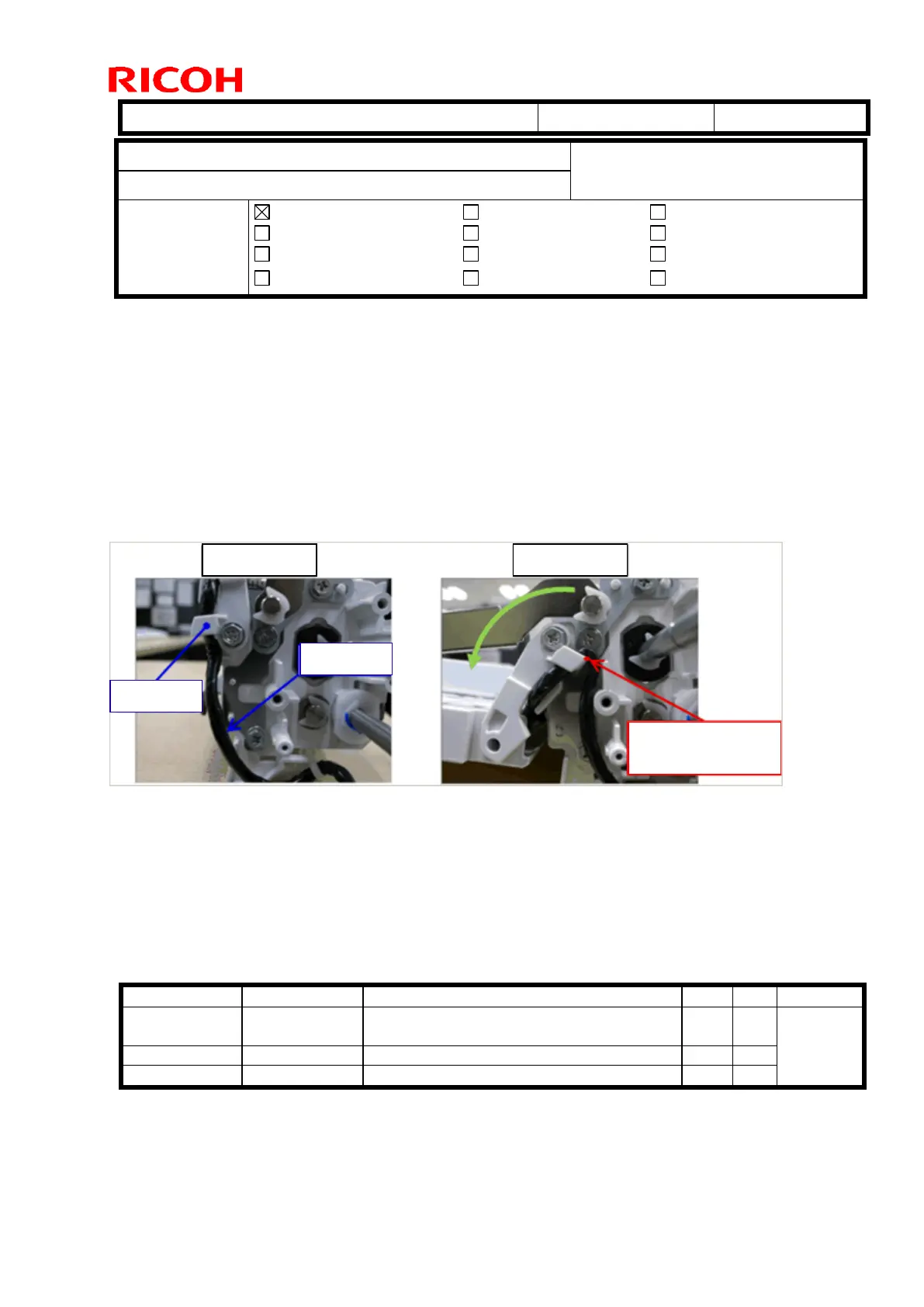

Ricoh CH-C1 - RTB 158: Jam 58

Technical Bulletin PAGE: 1/9
Model: CH-C1a
Date: 28-May-15
No.: RD135158
Subject: Jam 58
Prepared by: K. Hamada
From: Field Quality Management Dept.
Classification:
Troubleshooting
Mechanical
Paper path
Part information
Electrical
Transmit/receive
Action required
Service manual revision
Retrofit information
Product Safety
Other ( )
Tier 2
SYMPTOM
Jam 58 (Bypass Feed Sensor: Lag Jam) occurs, and in some cases, SC899 or SC670
may also occur.
CAUSE
The harness for the paper size detection sensor might be damaged due to repeatedly
opening and closing the bypass tray.
SOLUTION
Install the following parts.
See Installation Procedure below
Old P/N
New P/N
Description
Q’ty
Int
Note
D1365344
D1365348
HARNESS:MANUAL FEED
UNIT:CONNECTING
1-1
X/X
Replace
as a set
D1362882
CAP:ARM:MANUAL FEED
0-1
-
D1362884
STOPPER:HARNESS:MANUAL FEED
0-1
-
Close
Open
Arm
Harness
Damaged area
