Technical Bulletin PAGE: 2/3
Model: CH-C1
Date: 14-Jan-14
No.: RD135059
Action
If SC515-02 is observed before the machine reaches 10K since installation, do the following procedure to
age the duplex transport roller/duplex exit roller.

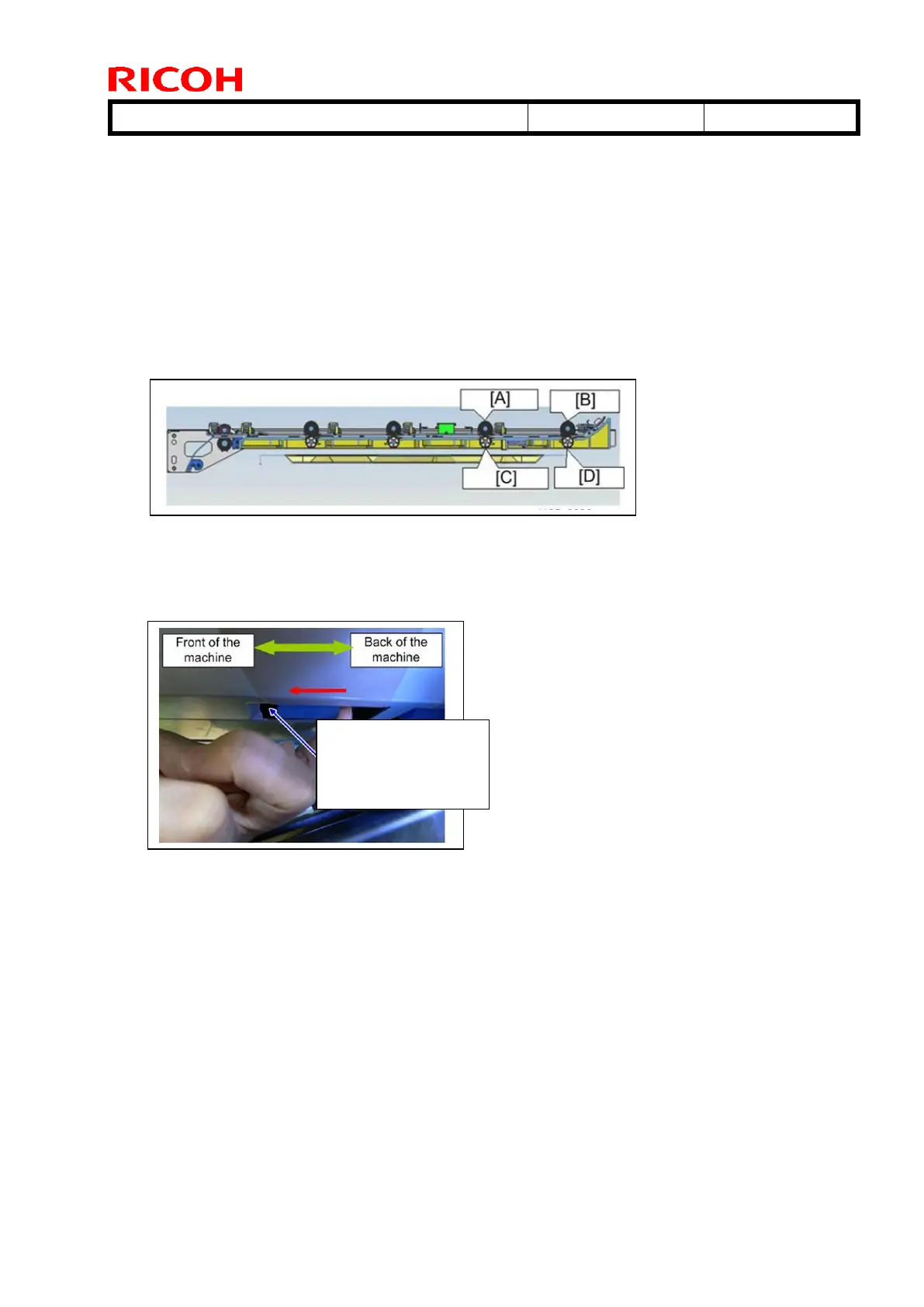

1. Pull out the drawer unit and open the duplex unit lower guide plate.
2. Slide the drive rollers of duplex transport roller [C] and duplex exit roller [D] with your fingers toward the
front side of the machine as far as they go.
Caution: Make sure to grip the edge of the rollers, not the surface.
3. Slide the drive rollers of duplex transport roller [A] and duplex exit roller [B] with your fingers toward the
front side of the machine as far as they go.
Caution: Make sure to grip the edge of the rollers, not the surface.
[A]: Duplex transport roller 4 (drive)
[B]: Duplex exit roller (drive)
[C]: Duplex transport roller 4 (idle)
[D]: Duplex exit roller (idle)
4. Close the duplex unit lower guide plate and push the drawer unit back into the machine.
5. Set SP5-806-174 (Duplex Exit Mtr:Feed Speed:Std Speed) to ON to rotate the duplex transport rollers 2
and 3.
6. While keeping SP5-806-161 set to ON, set SP5-806-200 (Shift Roller Motor2:Homing) ON and then
OFF. Repeat the ON/OFF cycle 10 times.
7. Set SP5-806-174 (Duplex Exit Mtr:Feed Speed:Std Speed) back to OFF.
8. Pull out the drawer unit and open the duplex unit lower guide plate.
The roller will not reach
the edge of the cut-out
and will leave a slight gap
even when slid to the
farthest position.
