Technical Bulletin PAGE: 5/14
Reissued:15-Oct-13
Model: CH-C1
Date: 17-Sep-13
No.: RD135028b
2. INSTALLATION
MAIN MACHINE INSTALLATION
INSTALLATION PROCEDURE (D135/D136)
Removing the Retainers of the Charge Roller Units (C, M, K)

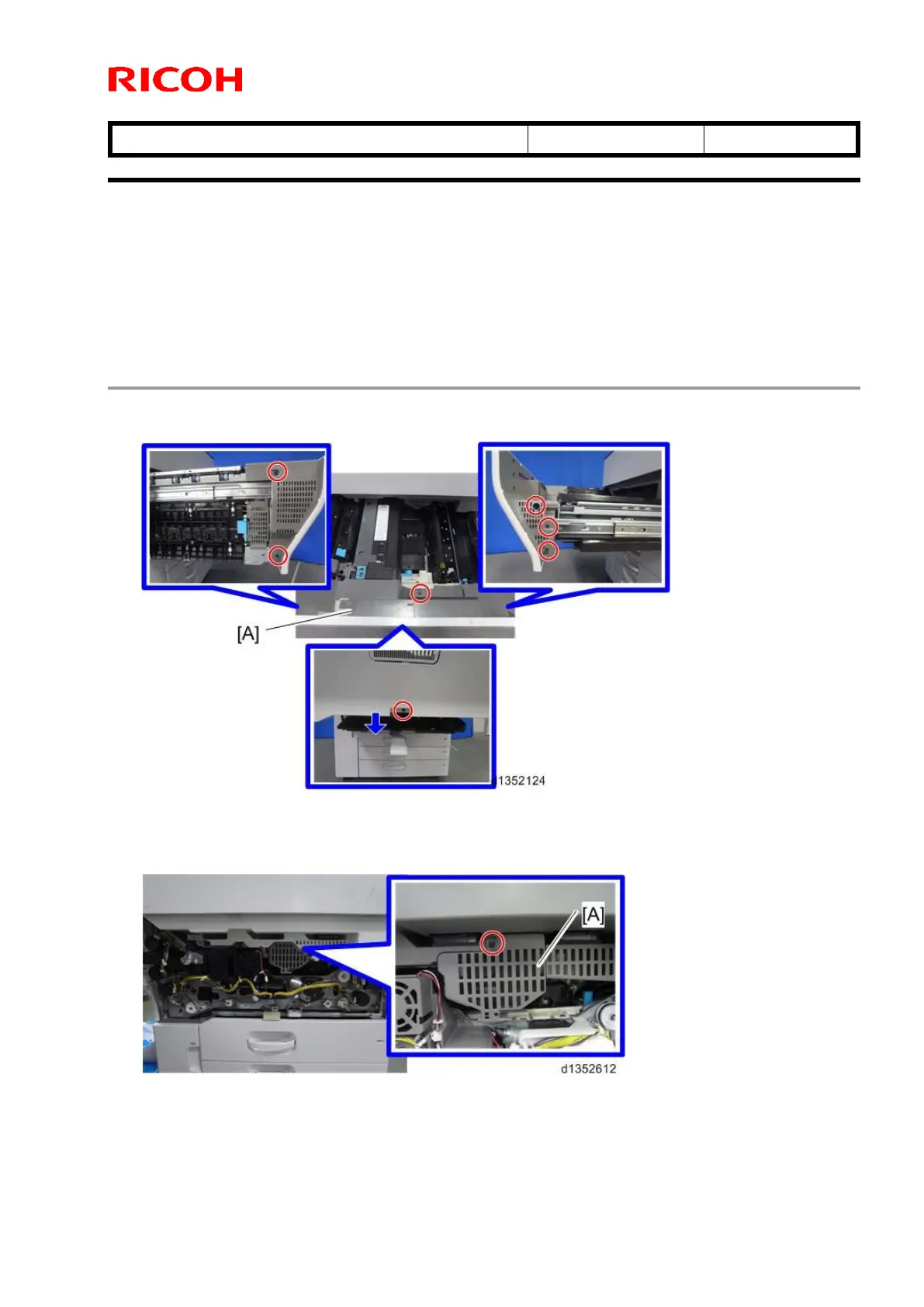

1. Pull out the drawer unit and remove its cover [A]. (screw x7)
2. Slide the drawer unit back into the mainframe and remove the ITB cleaning intake fan
[A] together with the duct. (screw x 1)
