Technical Bulletin PAGE: 5/11
Reissued:27-Mar-14
Model: Finisher SR4090/Booklet Finisher SR4100

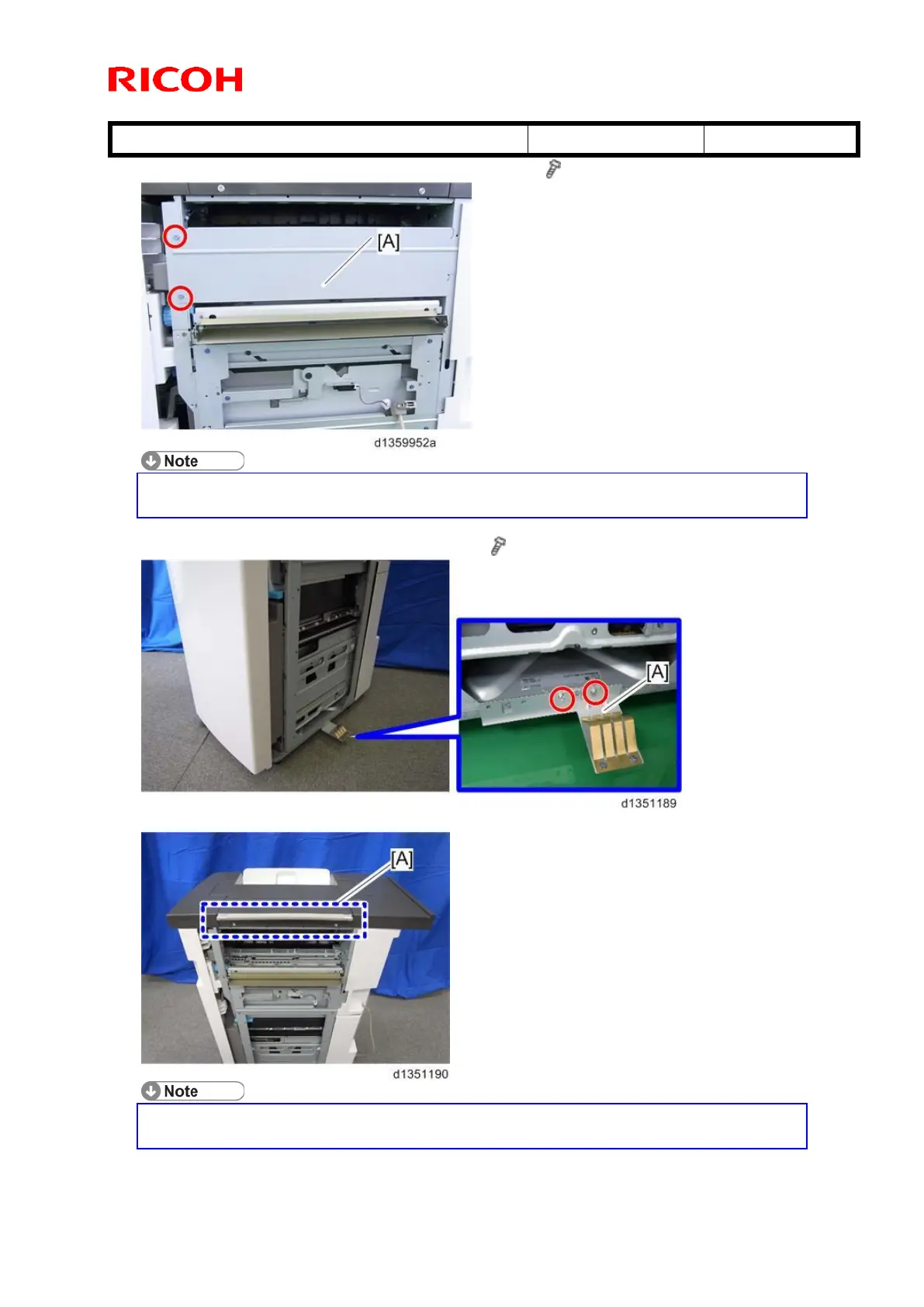

7. Attach the Cover: Right Upper [A] to the finisher. ( x 2)
If the Cover Interposer Tray CI4010 (D711) is to be installed, DO NOT attach the
Cover: Right Upper.
8. Install the ground plate [A] on the finisher. ( x 2; M3 x 6 )
9. Attach the cushion [A] to the finisher.
Make sure that the cushion is placed within 0 to 1 mm from the edge of the
cover.
To Next Page
