4.2 Wall-mounting

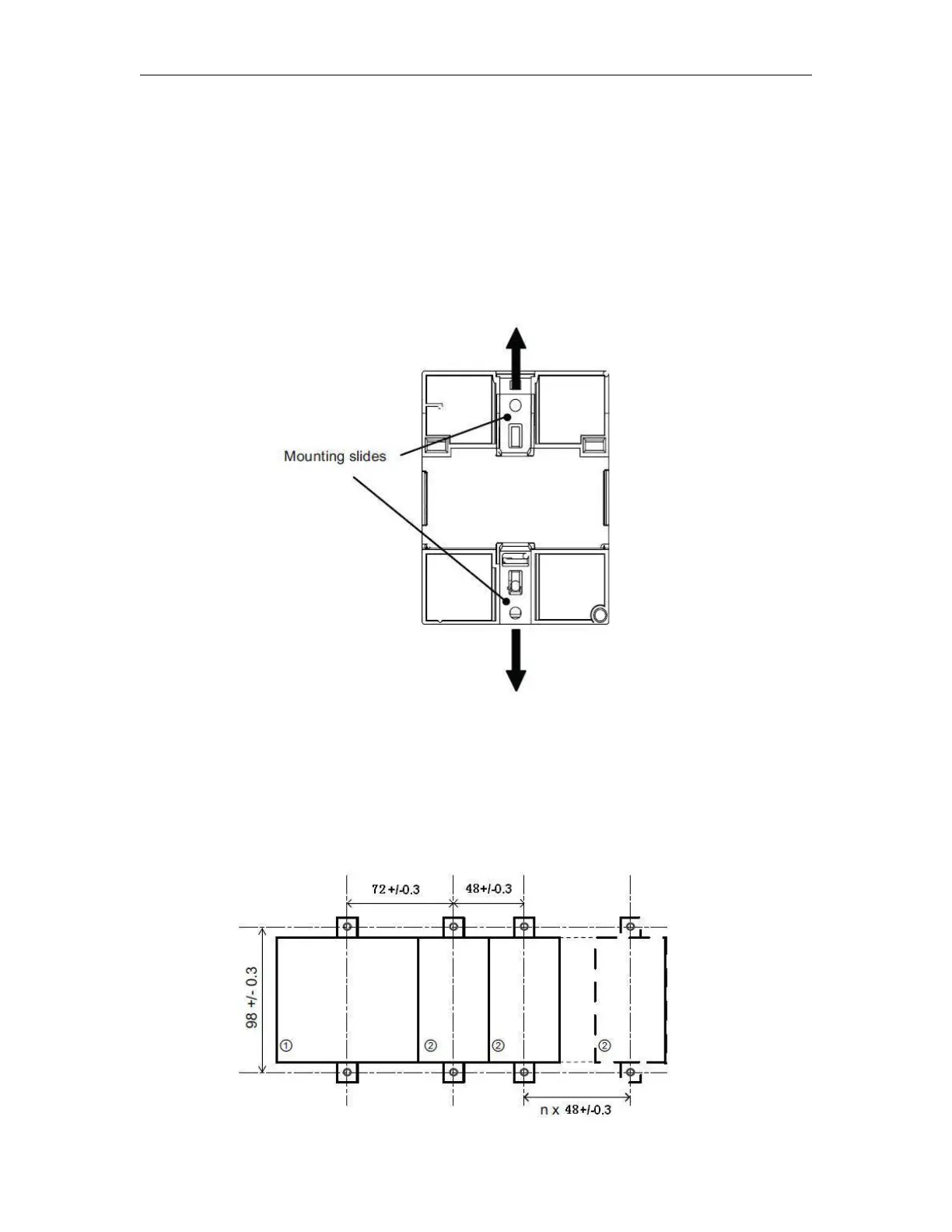

For wall-mounting, first slide the mounting slides on the rear side of the devices towards
the outside. You can now wall-mount x-Messenger by means of two mounting slides and
two ØM4 screws (tightening torque 0.8 to 1.2 Nm).
Drilling template for wall-mounting
Before you can wall-mount x-Messenger, you need to drill holes using the template
shown below.
EXM series(applied to CPU and extensions):
