Output Q is set to 1 with a 0 to 1 signal transition at Trg.
If output Q = 0, and input Trg is set hi at least for the duration of TL, the permanent lighting function is
enabled and output Q is set accordingly.
The off delay time T is triggered when the status at input Trg changes to 0 before the time T
L
has expired.
Output Q is reset when the Ta = T.
Before the off delay time (T - T
!
) has expired, you can output an off pre-warning that resets Q for the duration
of the off pre-warning time T
!L
. A further signal at input Trg always resets T and output Q.
Caution
The time base for the T, T
!
and T
!L
must be identical.
If retentivity is not set, output Q and the expired time are reset after a power failure.

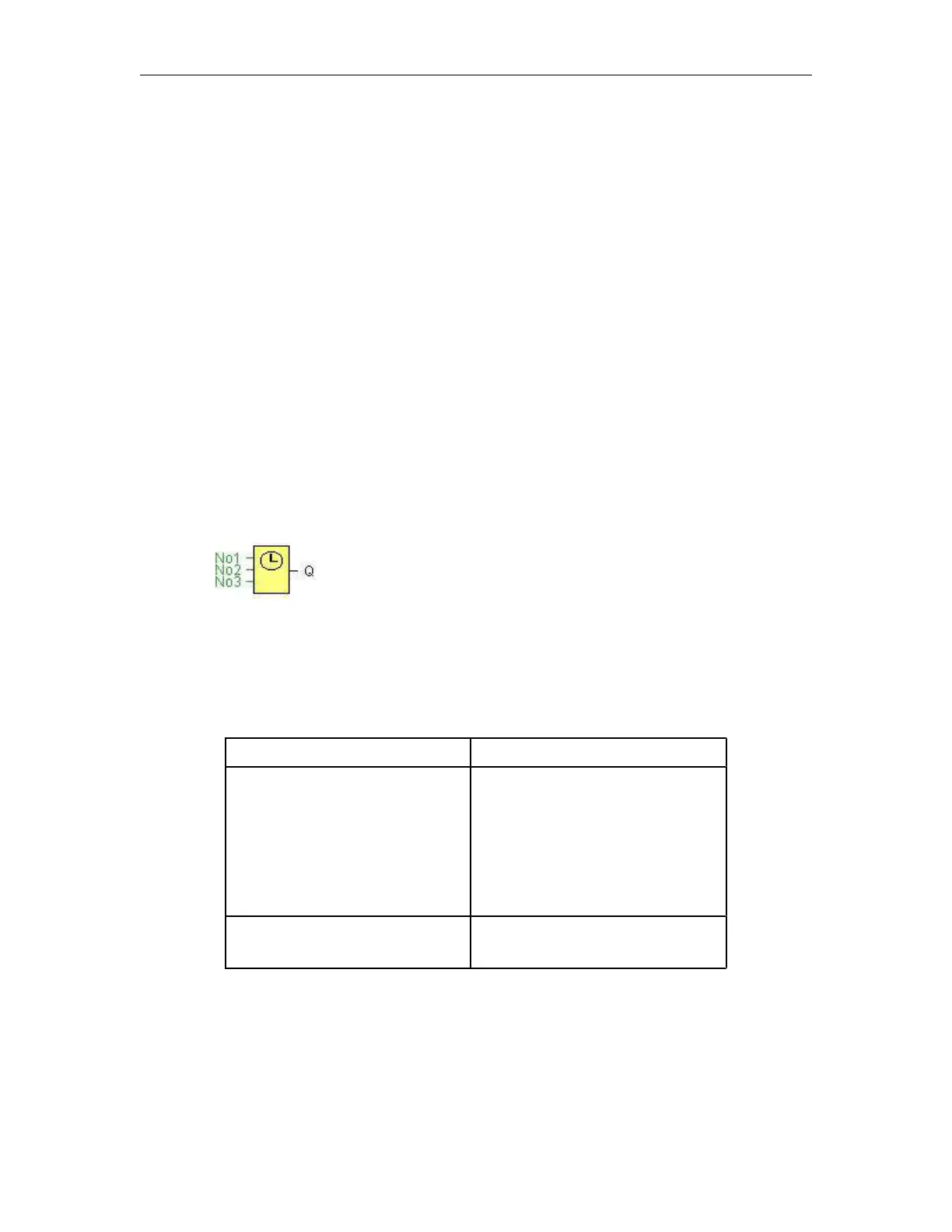

6.5.11 Weekly timer
Short description
The output is controlled by means of a configurable on/off date. The function supports any combination of
weekdays.
Connection
Description
Parameter
At the No1, No2, No3 (cam)
parameters you set the on and
off triggers for each cam of the
weekly timer. The parameter
units are the days and the
time-of-day.
Output Q
Q is set when the configured
cam is actuated.
Parameter
You can configure a time hysteresis for each individual cam in parameter mode. For information about how
