Rievtech x-Messenger Series - Retentive On-Delay

227
6.5.4 Retentive on-delay
Short description
A one-shot at the input triggers a configurable time. The output is set upon expiration of this time.
Connection
Description
Input Trg
Trigger the on delay time via the Trg (Trigger) input.
Input R
Reset the time on delay time and reset the output to 0 via
input R (Reset).
Reset takes priority over Trg.
Parameter
T is the on delay time for the output (output signal transition
0 to 1).
Retentivity on = the status is retentive in memory.
Output Q
Q is switched on upon expiration of the time T.
Parameter
The time in parameter T can be provided by the value of another already-programmed function:
Analog comparator: Ax – Ay
Analog trigger: Ax
Analog amplifier: Ax
Analog multiplexer: AQ
Analog ramp: AQ
Analog math: AQ
PI controller: AQ
Data latching relay: AQ
Up/Down counter: Cnt
The value of ＂Ｔ＂can be set/modified in parameter mode.

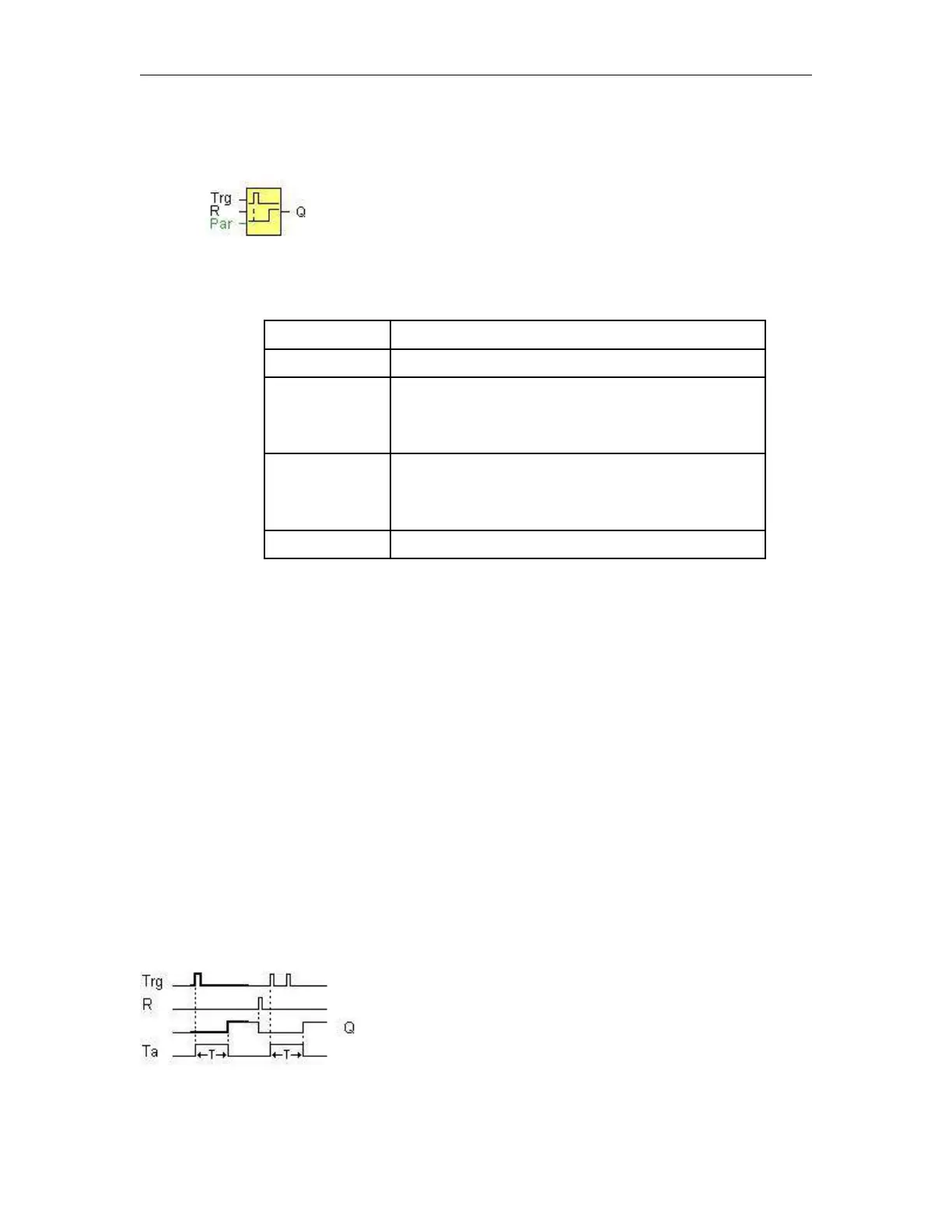

Timing diagram
Description of the function
