6.5.40 Bit to Word
Short description
This special function is used to transfer the 16-Bit status(0 or 1)(F or Q) to word type data (AF or AQ).

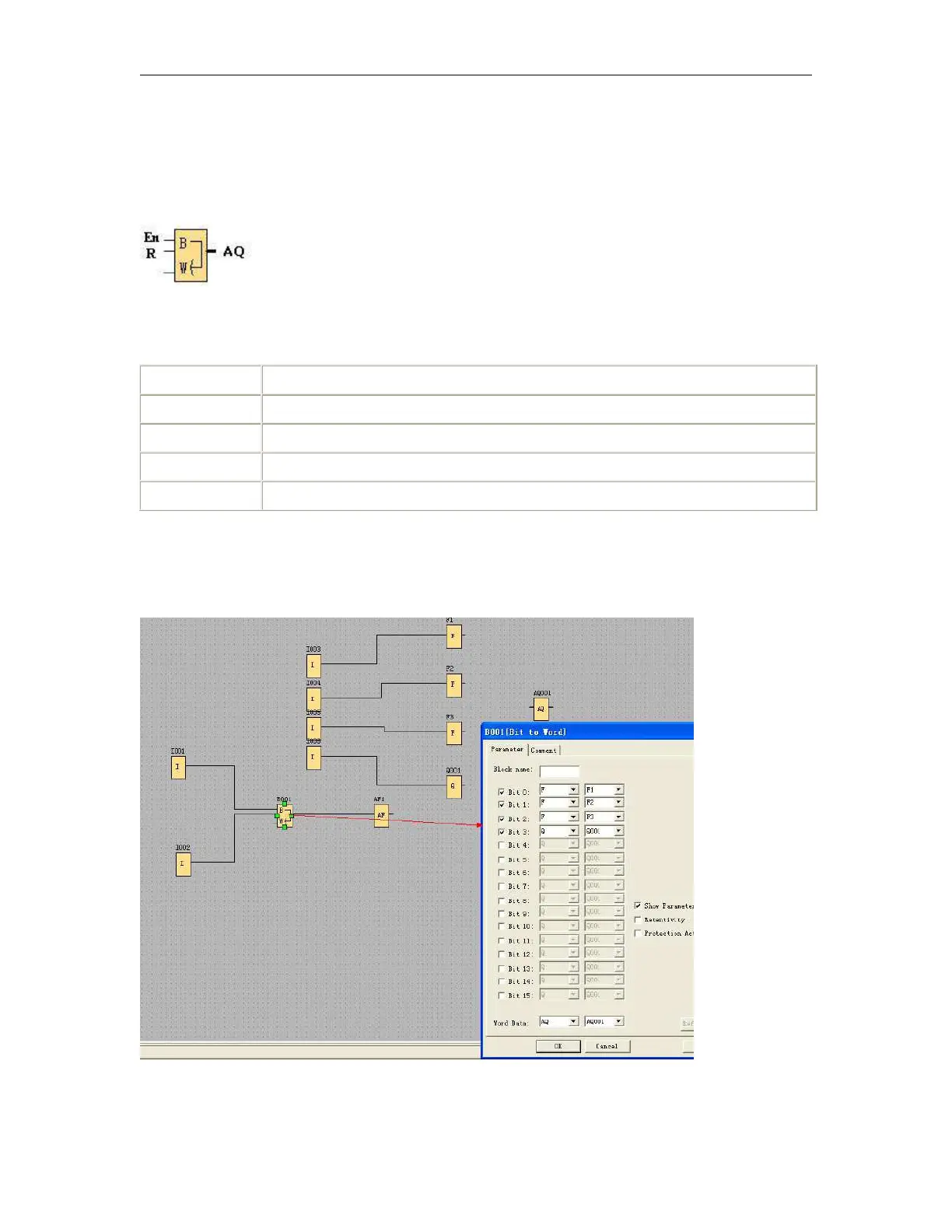

Connection
Description
Input En
Enable this function.
Input R
Reset output AQ with a signal at input R (Reset).
Parameter
Retentivity set (on) = the value is retentive in memory when power lost.
Output AQ
AQ will output the value of the block when En was activated.
For example
Transfer the F1--F3 and Q1 status to the AQ001. F1 is saved in Bit0, F2 is saved in Bit1,F3 is saved in Bit2,Q1
is saved in Bit3.
