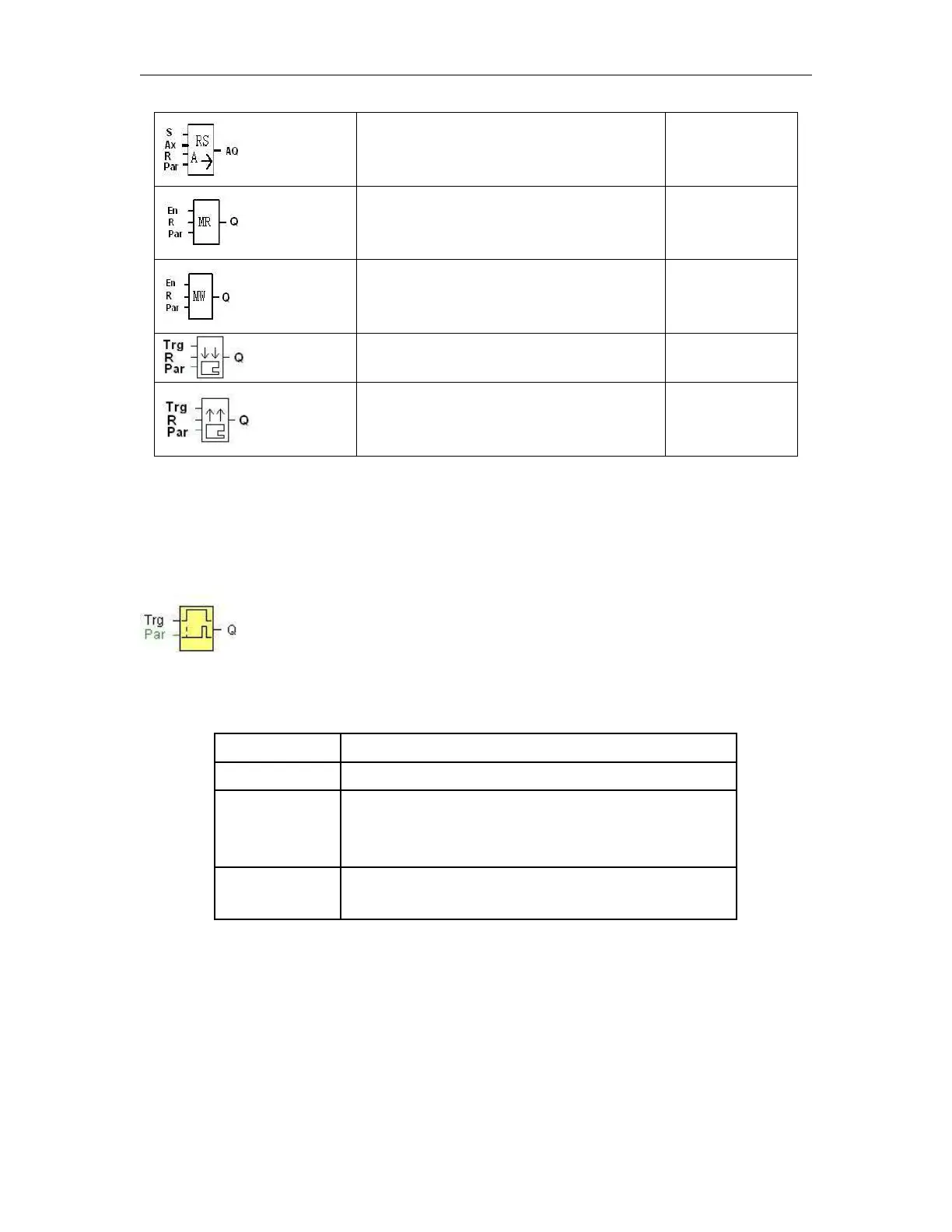

6.5.1 On-delay
Short description
The output is not switched on until a configured delay time has expired.
Connection
Description
Trg input
The on delay time is triggered via the Trg (Trigger) input
Parameter
T represents the on delay time after which the output is
switched on (output signal transition 0 to 1).
Retentivity on = the status is retentive in memory.
Output Q
Q switches on after a specified time T has expired, provided Trg
is still set.
Parameter T
The time for parameter T can also be preset based on the actual value of another, already-configured
function. You can use the actual values of the following functions:
Analog comparator: Ax - Ay
Analog trigger: Ax
Analog amplifier: Ax
