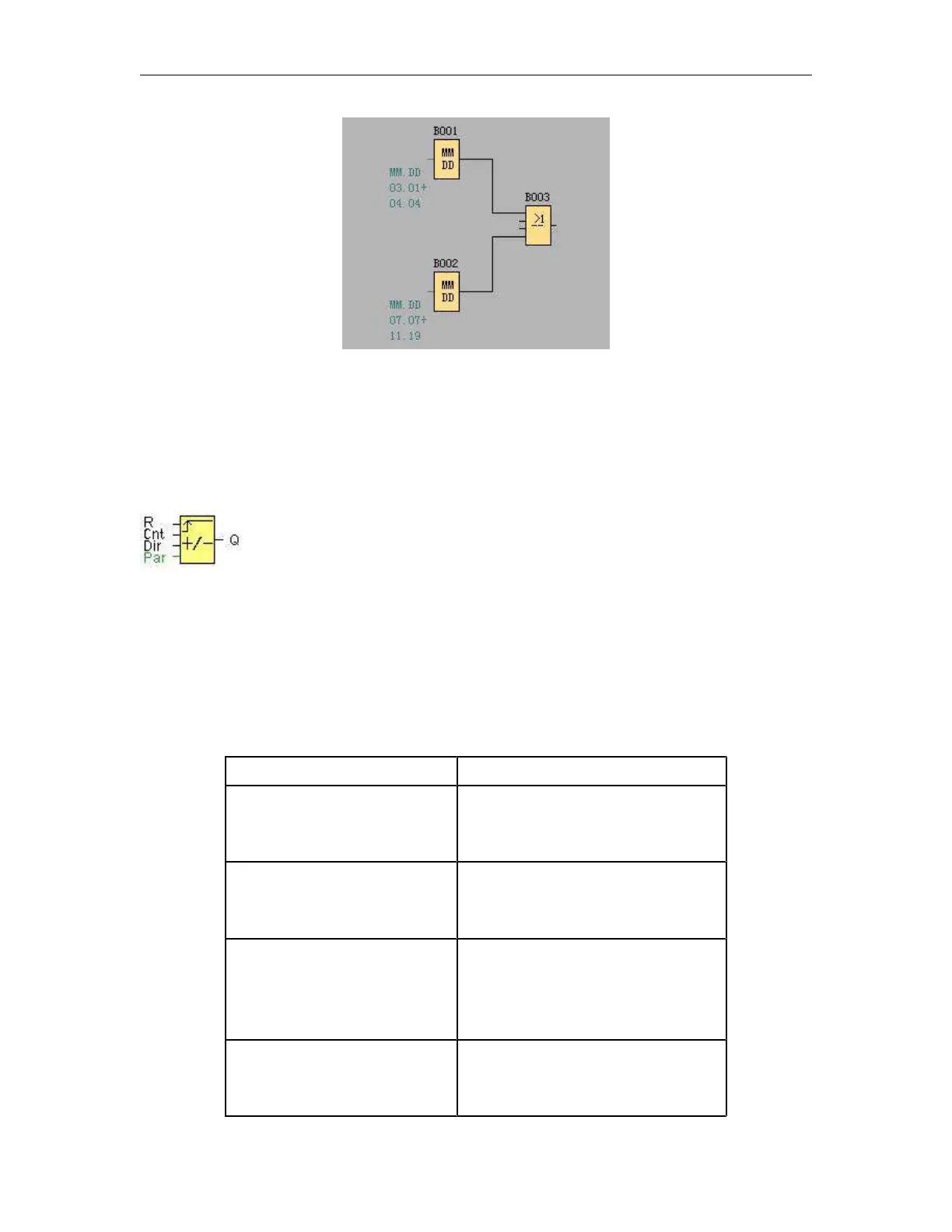

6.5.13 Up/Down counter
Short description
An input pulse increments or decrements an internal value, depending on the parameter setting. The output
is set or reset when a configured threshold is reached. The direction of count can be changed with a signal at
input Dir
You reset the output and the internal
counter value to zero with a signal at input
R (Reset).
This function counts the 0 to 1 transitions
at input Cnt. It does not count 1 to 0
transitions.
Input Dir (Direction) determines the
direction of count:
Dir = 0: Up
Dir = 1: Down
On: On threshold
Value range: 0...99999999
Off: Off threshold
