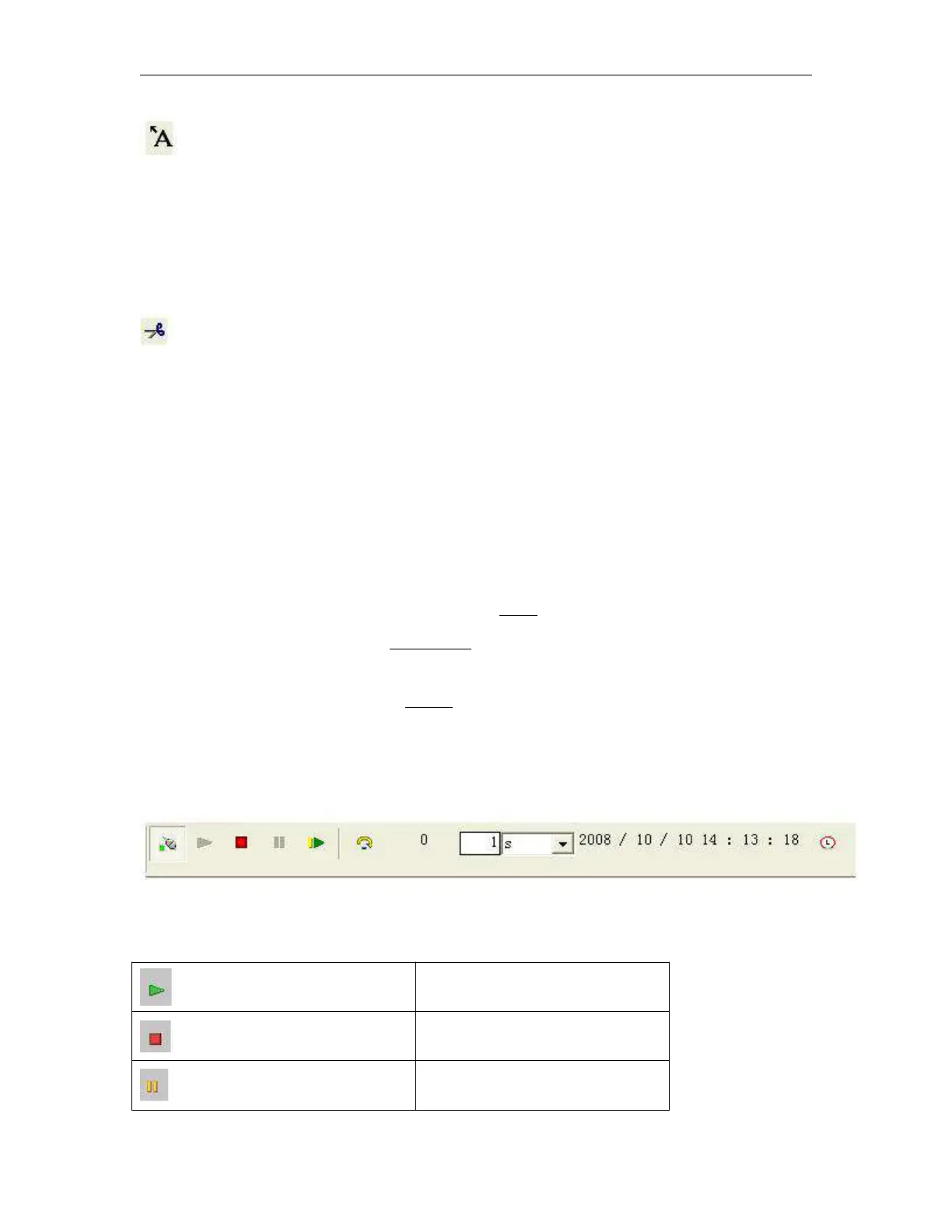

This tool is used to insert or edit user-defined text objects in the programming interface. You can specify the
font type, font size and font color for each individual label.
Text figures can be set in Wrap Text format. You can adjust the size of a text figure typically by dragging the
rectangle handles.
Cut/Join
This tool is used to cut and join connections between blocks. To cut a connection, left-click to select the
relevant line while the Cut/Join tool is active. The connection is replaced at the blocks by a reference to the
partner block. The reference is labeled with the page number, block number and the I/O of the partner block.
6.8.4 Simulation Tool and status window
A toolbox pops up when you open the simulation mode. It contains:
Icons (e.g. switches) for operator control of the inputs .
An icon for the simulation of a power failure, for testing the switching response with reference to
retentivity characteristics after power failure.
Icons (e.g. bulbs) for monitoring outputs .
Simulation control icons and
Simulation control icons
