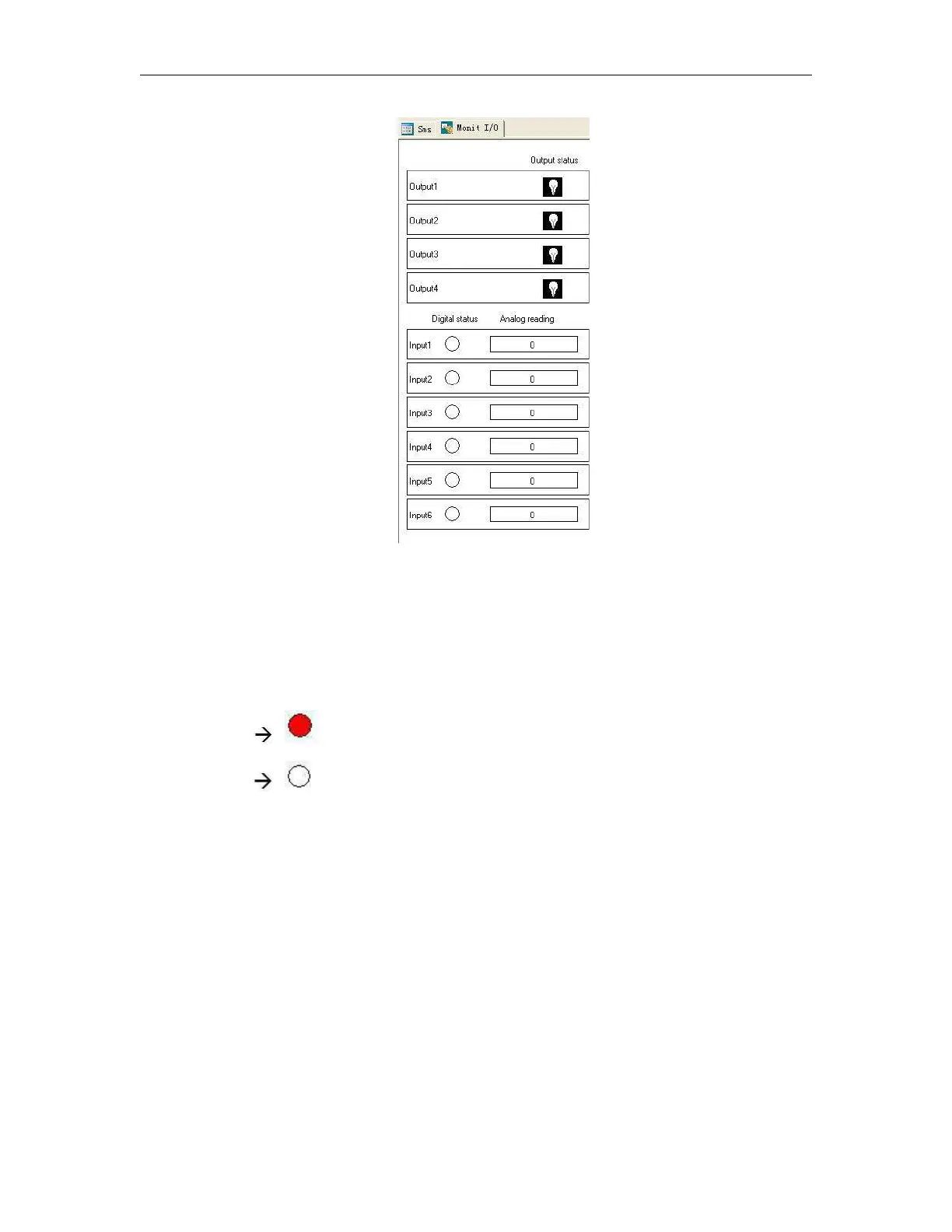

Digital IO status and analog input value can be displayed.
5.8.5 Digital inputs
Digital input ON
Digital input OFF
5.8.6 Analogue inputs
The measuring bar always displays the input value 0 to 1000 ,which represents the analog input signal 0 to
10V DC(0…20 mA).
Example:the input signal is 5V DC(10mA) , so the value shall display 500.
5.8.7 Outputs
