The Dir parameter gives the action
direction of the controller.
Positive means: If set value > process
value then the process value is
increased; if set value < process
value then the process value is
reduced.
Negative means: If set value >
process value then the process value
is reduced; if set value < process
value then the process value is
increased.
e.g. heat regulation: if the set value is
greater than the process value (room
is too cold), the manipulated variable
increases the process value.
- or +

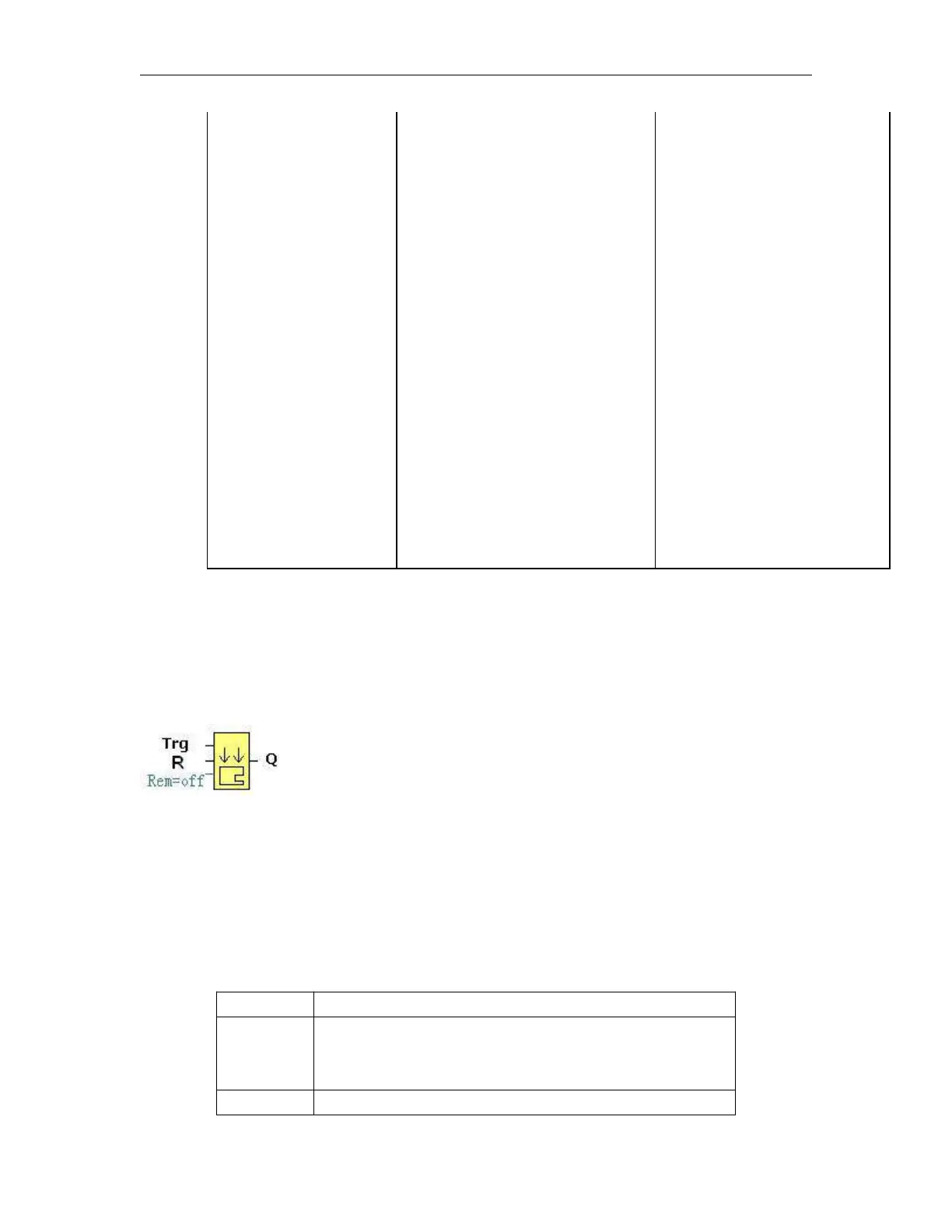

6.5.37 Memory write
Short Description
Only when there is a low to high trigger at Trg pin, the Memory Write block will be activated and the
pre-configured record action will be performed, at the same time the output will switch on if the record action
had been done successfully.
Connection
Description
Trg input
Only when there is a low to high trigger at Trg pin, the Memory
write Read block will be activated and the pre-configured record
action will be performed. Each trigger, only write once.
Input R
Reset the Memory Write block and set the output to 0 via the R
